1.1 Chemical Purity and Crystalline-to-Amorphous Transition

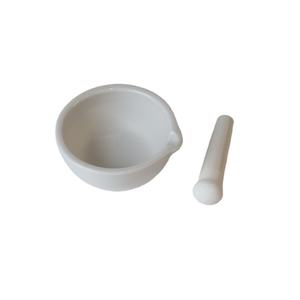

(Quartz Ceramics)

Quartz ceramics, likewise referred to as integrated silica or integrated quartz, are a course of high-performance not natural materials stemmed from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) type.

Unlike standard ceramics that count on polycrystalline structures, quartz ceramics are distinguished by their total absence of grain borders as a result of their lustrous, isotropic network of SiO four tetrahedra interconnected in a three-dimensional arbitrary network.

This amorphous structure is achieved with high-temperature melting of natural quartz crystals or synthetic silica forerunners, followed by quick air conditioning to avoid formation.

The resulting product consists of usually over 99.9% SiO TWO, with trace pollutants such as alkali steels (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million levels to maintain optical clearness, electrical resistivity, and thermal performance.

The absence of long-range order eliminates anisotropic habits, making quartz ceramics dimensionally stable and mechanically uniform in all directions– an important benefit in precision applications.

1.2 Thermal Habits and Resistance to Thermal Shock

Among the most defining features of quartz ceramics is their incredibly reduced coefficient of thermal growth (CTE), typically around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.

This near-zero growth develops from the flexible Si– O– Si bond angles in the amorphous network, which can adjust under thermal anxiety without breaking, enabling the product to hold up against quick temperature level changes that would fracture conventional porcelains or metals.

Quartz porcelains can withstand thermal shocks exceeding 1000 ° C, such as direct immersion in water after warming to heated temperature levels, without cracking or spalling.

This building makes them important in settings including duplicated heating and cooling down cycles, such as semiconductor handling heating systems, aerospace parts, and high-intensity lights systems.

In addition, quartz ceramics keep architectural integrity approximately temperature levels of approximately 1100 ° C in continual service, with temporary exposure resistance coming close to 1600 ° C in inert atmospheres.

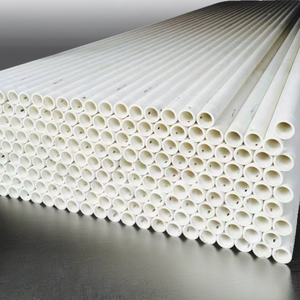

( Quartz Ceramics)

Past thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and excellent resistance to devitrification– though long term direct exposure over 1200 ° C can initiate surface area condensation into cristobalite, which might endanger mechanical toughness because of quantity changes throughout stage transitions.

2. Optical, Electric, and Chemical Qualities of Fused Silica Systems

2.1 Broadband Transparency and Photonic Applications

Quartz porcelains are renowned for their extraordinary optical transmission throughout a broad spectral variety, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.

This transparency is allowed by the absence of impurities and the homogeneity of the amorphous network, which decreases light spreading and absorption.

High-purity synthetic fused silica, created through flame hydrolysis of silicon chlorides, accomplishes also higher UV transmission and is used in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.

The product’s high laser damages threshold– withstanding break down under extreme pulsed laser irradiation– makes it suitable for high-energy laser systems used in fusion study and industrial machining.

Furthermore, its reduced autofluorescence and radiation resistance guarantee dependability in clinical instrumentation, including spectrometers, UV healing systems, and nuclear surveillance gadgets.

2.2 Dielectric Efficiency and Chemical Inertness

From an electrical viewpoint, quartz porcelains are superior insulators with volume resistivity exceeding 10 ¹⁸ Ω · cm at area temperature and a dielectric constant of roughly 3.8 at 1 MHz.

Their reduced dielectric loss tangent (tan δ < 0.0001) makes certain marginal power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave home windows, radar domes, and shielding substrates in electronic settings up.

These properties remain steady over a wide temperature level variety, unlike lots of polymers or traditional porcelains that deteriorate electrically under thermal tension.

Chemically, quartz porcelains exhibit remarkable inertness to the majority of acids, consisting of hydrochloric, nitric, and sulfuric acids, because of the stability of the Si– O bond.

Nevertheless, they are prone to strike by hydrofluoric acid (HF) and solid antacids such as hot sodium hydroxide, which damage the Si– O– Si network.

This careful sensitivity is manipulated in microfabrication processes where controlled etching of merged silica is needed.

In aggressive commercial atmospheres– such as chemical handling, semiconductor wet benches, and high-purity liquid handling– quartz ceramics serve as liners, sight glasses, and activator components where contamination should be reduced.

3. Production Processes and Geometric Engineering of Quartz Ceramic Elements

3.1 Thawing and Developing Techniques

The production of quartz ceramics includes several specialized melting techniques, each customized to details pureness and application demands.

Electric arc melting uses high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, producing large boules or tubes with superb thermal and mechanical properties.

Fire fusion, or burning synthesis, includes melting silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen fire, transferring fine silica bits that sinter into a transparent preform– this technique produces the highest optical high quality and is used for synthetic merged silica.

Plasma melting offers an alternative course, giving ultra-high temperatures and contamination-free processing for particular niche aerospace and protection applications.

When thawed, quartz ceramics can be shaped via accuracy spreading, centrifugal developing (for tubes), or CNC machining of pre-sintered spaces.

Because of their brittleness, machining requires ruby devices and cautious control to stay clear of microcracking.

3.2 Accuracy Construction and Surface Area Completing

Quartz ceramic parts are often produced right into intricate geometries such as crucibles, tubes, poles, windows, and customized insulators for semiconductor, solar, and laser industries.

Dimensional precision is essential, especially in semiconductor manufacturing where quartz susceptors and bell jars should keep specific alignment and thermal harmony.

Surface area finishing plays a crucial duty in efficiency; refined surface areas minimize light scattering in optical elements and lessen nucleation websites for devitrification in high-temperature applications.

Engraving with buffered HF options can produce controlled surface area structures or remove damaged layers after machining.

For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleansed and baked to eliminate surface-adsorbed gases, guaranteeing minimal outgassing and compatibility with delicate procedures like molecular beam epitaxy (MBE).

4. Industrial and Scientific Applications of Quartz Ceramics

4.1 Duty in Semiconductor and Photovoltaic Production

Quartz porcelains are foundational products in the manufacture of integrated circuits and solar cells, where they function as heating system tubes, wafer watercrafts (susceptors), and diffusion chambers.

Their capacity to hold up against high temperatures in oxidizing, lowering, or inert ambiences– incorporated with reduced metal contamination– makes certain procedure pureness and return.

Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz parts keep dimensional stability and resist warping, avoiding wafer damage and imbalance.

In photovoltaic or pv manufacturing, quartz crucibles are utilized to expand monocrystalline silicon ingots by means of the Czochralski process, where their pureness straight influences the electric high quality of the last solar cells.

4.2 Usage in Lights, Aerospace, and Analytical Instrumentation

In high-intensity discharge (HID) lamps and UV sanitation systems, quartz ceramic envelopes include plasma arcs at temperature levels surpassing 1000 ° C while sending UV and noticeable light efficiently.

Their thermal shock resistance avoids failing throughout quick lamp ignition and shutdown cycles.

In aerospace, quartz porcelains are used in radar windows, sensor housings, and thermal protection systems as a result of their reduced dielectric consistent, high strength-to-density ratio, and security under aerothermal loading.

In analytical chemistry and life scientific researches, merged silica blood vessels are essential in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness protects against example adsorption and makes certain exact separation.

Furthermore, quartz crystal microbalances (QCMs), which count on the piezoelectric residential properties of crystalline quartz (distinct from merged silica), use quartz ceramics as safety housings and insulating assistances in real-time mass picking up applications.

Finally, quartz ceramics stand for a special crossway of severe thermal resilience, optical openness, and chemical pureness.

Their amorphous structure and high SiO ₂ web content make it possible for efficiency in environments where traditional materials stop working, from the heart of semiconductor fabs to the edge of room.

As modern technology breakthroughs toward higher temperatures, higher precision, and cleaner procedures, quartz ceramics will certainly continue to serve as a crucial enabler of advancement throughout science and sector.
