1. The Nanoscale Design and Product Scientific Research of Aerogels
1.1 Genesis and Essential Framework of Aerogel Materials

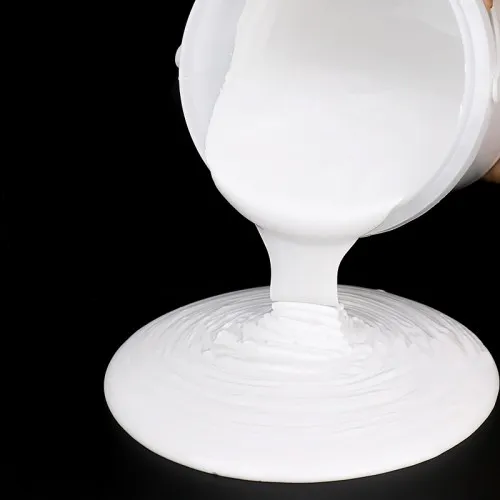

(Aerogel Insulation Coatings)
Aerogel insulation finishes represent a transformative development in thermal monitoring technology, rooted in the one-of-a-kind nanostructure of aerogels– ultra-lightweight, permeable products originated from gels in which the liquid part is changed with gas without breaking down the solid network.
First created in the 1930s by Samuel Kistler, aerogels continued to be greatly laboratory curiosities for decades as a result of fragility and high production prices.
Nonetheless, recent developments in sol-gel chemistry and drying methods have actually allowed the integration of aerogel fragments right into adaptable, sprayable, and brushable finish formulas, unlocking their capacity for widespread commercial application.
The core of aerogel’s remarkable shielding ability depends on its nanoscale porous framework: generally composed of silica (SiO TWO), the product shows porosity exceeding 90%, with pore sizes predominantly in the 2– 50 nm variety– well listed below the mean totally free path of air particles (~ 70 nm at ambient problems).
This nanoconfinement significantly lowers gaseous thermal transmission, as air molecules can not successfully transfer kinetic power via collisions within such restricted spaces.
At the same time, the strong silica network is engineered to be highly tortuous and alternate, decreasing conductive heat transfer with the solid stage.
The result is a material with one of the most affordable thermal conductivities of any kind of solid understood– normally in between 0.012 and 0.018 W/m · K at room temperature level– surpassing conventional insulation products like mineral woollen, polyurethane foam, or increased polystyrene.
1.2 Evolution from Monolithic Aerogels to Compound Coatings
Early aerogels were created as fragile, monolithic blocks, limiting their use to specific niche aerospace and clinical applications.
The shift towards composite aerogel insulation finishes has actually been driven by the need for flexible, conformal, and scalable thermal obstacles that can be related to complicated geometries such as pipes, shutoffs, and uneven tools surface areas.
Modern aerogel finishings include finely milled aerogel granules (often 1– 10 µm in diameter) distributed within polymeric binders such as polymers, silicones, or epoxies.

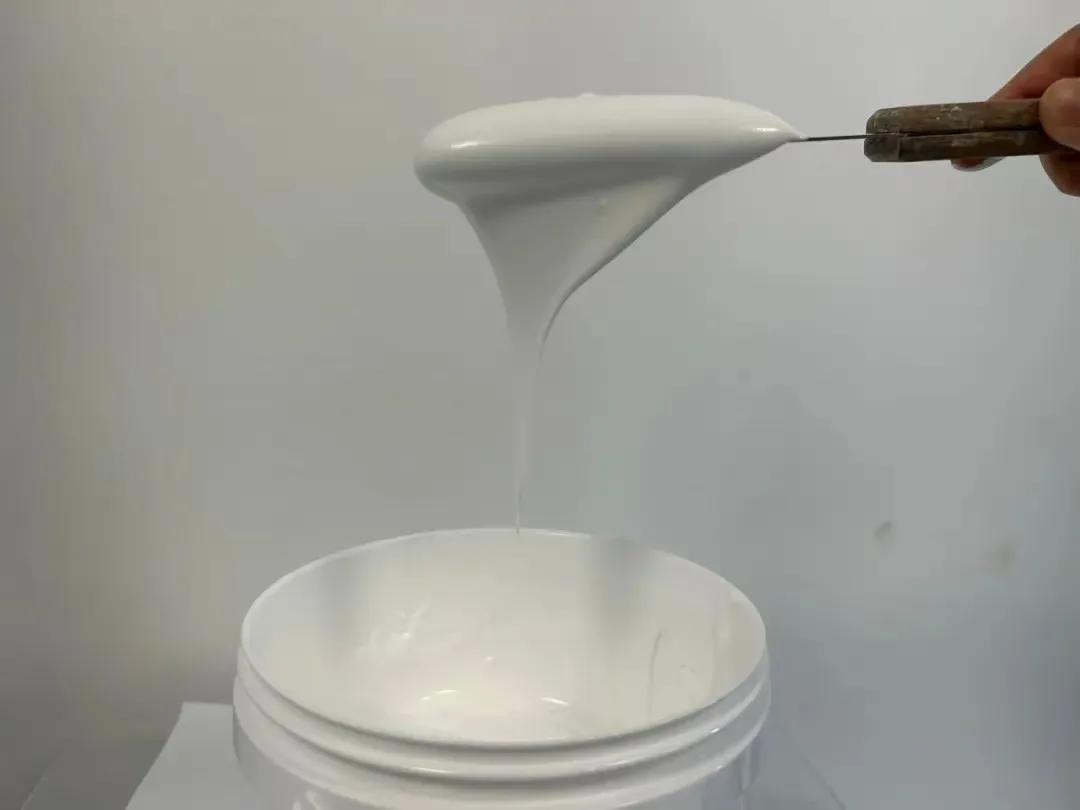

( Aerogel Insulation Coatings)
These hybrid formulations keep much of the innate thermal efficiency of pure aerogels while gaining mechanical toughness, bond, and weather condition resistance.
The binder phase, while slightly raising thermal conductivity, supplies essential communication and enables application through standard commercial techniques consisting of splashing, rolling, or dipping.
Most importantly, the quantity fraction of aerogel particles is maximized to stabilize insulation efficiency with movie honesty– typically varying from 40% to 70% by volume in high-performance solutions.
This composite approach preserves the Knudsen impact (the reductions of gas-phase transmission in nanopores) while allowing for tunable residential or commercial properties such as flexibility, water repellency, and fire resistance.
2. Thermal Efficiency and Multimodal Warmth Transfer Suppression
2.1 Systems of Thermal Insulation at the Nanoscale
Aerogel insulation coatings achieve their exceptional efficiency by at the same time subduing all three modes of warmth transfer: transmission, convection, and radiation.
Conductive warmth transfer is minimized through the mix of reduced solid-phase connection and the nanoporous structure that restrains gas particle motion.
Since the aerogel network contains exceptionally slim, interconnected silica strands (commonly simply a couple of nanometers in diameter), the pathway for phonon transport (heat-carrying latticework resonances) is highly limited.
This architectural style properly decouples surrounding areas of the covering, reducing thermal connecting.
Convective heat transfer is inherently absent within the nanopores due to the inability of air to develop convection currents in such confined areas.
Even at macroscopic ranges, properly applied aerogel coverings remove air voids and convective loopholes that pester conventional insulation systems, particularly in vertical or overhead installations.
Radiative warmth transfer, which comes to be substantial at elevated temperatures (> 100 ° C), is reduced through the unification of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These ingredients boost the coating’s opacity to infrared radiation, scattering and absorbing thermal photons prior to they can pass through the layer thickness.
The synergy of these mechanisms results in a product that offers comparable insulation performance at a portion of the density of traditional products– usually accomplishing R-values (thermal resistance) several times greater per unit thickness.
2.2 Performance Throughout Temperature and Environmental Problems
One of the most compelling benefits of aerogel insulation layers is their consistent performance across a wide temperature level range, usually varying from cryogenic temperature levels (-200 ° C) to over 600 ° C, depending upon the binder system made use of.
At low temperatures, such as in LNG pipelines or refrigeration systems, aerogel finishes stop condensation and minimize warmth access much more successfully than foam-based choices.
At high temperatures, particularly in commercial process equipment, exhaust systems, or power generation centers, they safeguard underlying substratums from thermal deterioration while lessening energy loss.
Unlike organic foams that may decompose or char, silica-based aerogel layers continue to be dimensionally steady and non-combustible, contributing to passive fire security approaches.
Furthermore, their low tide absorption and hydrophobic surface area therapies (frequently attained by means of silane functionalization) avoid performance destruction in humid or wet settings– a typical failing mode for fibrous insulation.
3. Formulation Approaches and Useful Integration in Coatings
3.1 Binder Selection and Mechanical Residential Property Design
The selection of binder in aerogel insulation coatings is important to balancing thermal efficiency with toughness and application versatility.
Silicone-based binders provide superb high-temperature security and UV resistance, making them ideal for outdoor and commercial applications.
Acrylic binders give excellent bond to metals and concrete, along with ease of application and low VOC discharges, ideal for developing envelopes and heating and cooling systems.
Epoxy-modified formulations boost chemical resistance and mechanical toughness, useful in aquatic or harsh environments.
Formulators also include rheology modifiers, dispersants, and cross-linking agents to guarantee uniform particle circulation, prevent clearing up, and boost movie formation.
Adaptability is meticulously tuned to avoid cracking during thermal cycling or substratum contortion, particularly on dynamic frameworks like expansion joints or shaking machinery.
3.2 Multifunctional Enhancements and Smart Covering Possible
Past thermal insulation, contemporary aerogel finishings are being engineered with extra performances.
Some formulas include corrosion-inhibiting pigments or self-healing representatives that prolong the lifespan of metallic substrates.
Others incorporate phase-change materials (PCMs) within the matrix to offer thermal power storage space, smoothing temperature level changes in buildings or electronic rooms.
Arising research study explores the integration of conductive nanomaterials (e.g., carbon nanotubes) to allow in-situ tracking of covering honesty or temperature level distribution– leading the way for “smart” thermal management systems.
These multifunctional abilities setting aerogel layers not merely as easy insulators yet as active components in smart facilities and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Adoption
4.1 Energy Performance in Building and Industrial Sectors
Aerogel insulation finishes are progressively released in business buildings, refineries, and power plants to decrease energy consumption and carbon emissions.
Applied to vapor lines, central heating boilers, and warmth exchangers, they significantly reduced warm loss, boosting system performance and decreasing fuel demand.
In retrofit circumstances, their thin profile permits insulation to be included without major structural alterations, maintaining room and decreasing downtime.
In residential and commercial construction, aerogel-enhanced paints and plasters are utilized on wall surfaces, roofs, and windows to improve thermal comfort and decrease cooling and heating loads.
4.2 Niche and High-Performance Applications
The aerospace, automobile, and electronics markets leverage aerogel layers for weight-sensitive and space-constrained thermal monitoring.
In electric cars, they safeguard battery packs from thermal runaway and outside heat sources.
In electronics, ultra-thin aerogel layers shield high-power elements and stop hotspots.
Their usage in cryogenic storage space, space habitats, and deep-sea equipment emphasizes their reliability in extreme atmospheres.
As producing scales and expenses decrease, aerogel insulation coverings are poised to end up being a foundation of next-generation lasting and resistant framework.
