1. The Scientific research and Structure of Alumina Porcelain Products
1.1 Crystallography and Compositional Variants of Aluminum Oxide

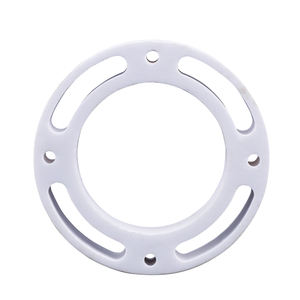

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from light weight aluminum oxide (Al two O TWO), a substance renowned for its outstanding equilibrium of mechanical strength, thermal stability, and electrical insulation.
One of the most thermodynamically secure and industrially appropriate phase of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) framework coming from the diamond family.
In this plan, oxygen ions form a thick lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites, leading to a very steady and durable atomic framework.
While pure alumina is in theory 100% Al ₂ O SIX, industrial-grade materials typically include small percents of additives such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O ₃) to regulate grain development during sintering and enhance densification.
Alumina porcelains are categorized by purity degrees: 96%, 99%, and 99.8% Al ₂ O four prevail, with greater purity associating to improved mechanical buildings, thermal conductivity, and chemical resistance.
The microstructure– especially grain dimension, porosity, and phase circulation– plays a vital role in figuring out the last performance of alumina rings in solution environments.
1.2 Key Physical and Mechanical Residence
Alumina ceramic rings display a suite of properties that make them crucial popular industrial settings.
They possess high compressive stamina (approximately 3000 MPa), flexural stamina (commonly 350– 500 MPa), and exceptional hardness (1500– 2000 HV), allowing resistance to use, abrasion, and contortion under tons.
Their low coefficient of thermal growth (roughly 7– 8 × 10 ⁻⁶/ K) makes certain dimensional stability throughout broad temperature level ranges, lessening thermal stress and anxiety and fracturing throughout thermal cycling.
Thermal conductivity varieties from 20 to 30 W/m · K, relying on purity, allowing for moderate heat dissipation– sufficient for many high-temperature applications without the demand for energetic air conditioning.
( Alumina Ceramics Ring)
Electrically, alumina is an impressive insulator with a volume resistivity exceeding 10 ¹⁴ Ω · centimeters and a dielectric toughness of around 10– 15 kV/mm, making it perfect for high-voltage insulation components.
Moreover, alumina demonstrates excellent resistance to chemical attack from acids, alkalis, and molten steels, although it is susceptible to strike by strong alkalis and hydrofluoric acid at elevated temperatures.
2. Production and Precision Engineering of Alumina Bands
2.1 Powder Handling and Forming Strategies
The production of high-performance alumina ceramic rings starts with the option and preparation of high-purity alumina powder.
Powders are generally synthesized using calcination of light weight aluminum hydroxide or with advanced techniques like sol-gel handling to accomplish fine bit dimension and slim size circulation.
To develop the ring geometry, a number of shaping techniques are employed, including:
Uniaxial pushing: where powder is compressed in a die under high stress to develop a “environment-friendly” ring.
Isostatic pressing: applying uniform pressure from all instructions utilizing a fluid medium, leading to higher thickness and more uniform microstructure, especially for complex or big rings.
Extrusion: suitable for long round forms that are later cut into rings, commonly used for lower-precision applications.
Injection molding: utilized for intricate geometries and limited resistances, where alumina powder is mixed with a polymer binder and infused right into a mold.
Each technique influences the final density, grain alignment, and defect circulation, requiring mindful procedure selection based upon application demands.
2.2 Sintering and Microstructural Advancement
After shaping, the environment-friendly rings undertake high-temperature sintering, normally between 1500 ° C and 1700 ° C in air or controlled atmospheres.
Throughout sintering, diffusion mechanisms drive bit coalescence, pore removal, and grain development, bring about a totally dense ceramic body.
The rate of heating, holding time, and cooling down profile are exactly controlled to avoid fracturing, warping, or exaggerated grain development.
Ingredients such as MgO are usually presented to prevent grain boundary flexibility, causing a fine-grained microstructure that enhances mechanical strength and integrity.
Post-sintering, alumina rings might undergo grinding and washing to attain limited dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface area coatings (Ra < 0.1 µm), important for sealing, bearing, and electrical insulation applications.
3. Useful Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively made use of in mechanical systems due to their wear resistance and dimensional stability.
Key applications consist of:
Sealing rings in pumps and shutoffs, where they withstand erosion from rough slurries and corrosive fluids in chemical handling and oil & gas markets.
Birthing components in high-speed or harsh atmospheres where metal bearings would weaken or need frequent lubrication.
Guide rings and bushings in automation tools, providing reduced rubbing and long life span without the requirement for oiling.
Use rings in compressors and wind turbines, minimizing clearance in between rotating and fixed components under high-pressure problems.
Their ability to preserve performance in completely dry or chemically hostile settings makes them superior to several metallic and polymer alternatives.
3.2 Thermal and Electrical Insulation Duties
In high-temperature and high-voltage systems, alumina rings serve as crucial protecting parts.
They are used as:
Insulators in burner and heating system components, where they support resisting cords while holding up against temperatures above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, avoiding electrical arcing while keeping hermetic seals.
Spacers and support rings in power electronic devices and switchgear, isolating conductive parts in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their low dielectric loss and high break down strength ensure signal stability.
The mix of high dielectric strength and thermal stability enables alumina rings to operate dependably in environments where organic insulators would deteriorate.
4. Product Improvements and Future Outlook
4.1 Composite and Doped Alumina Equipments
To better enhance performance, scientists and manufacturers are developing advanced alumina-based composites.
Examples include:
Alumina-zirconia (Al ₂ O FIVE-ZrO TWO) compounds, which show boosted fracture durability through change toughening systems.
Alumina-silicon carbide (Al ₂ O FIVE-SiC) nanocomposites, where nano-sized SiC particles improve firmness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can modify grain limit chemistry to improve high-temperature toughness and oxidation resistance.
These hybrid products expand the functional envelope of alumina rings into even more severe problems, such as high-stress dynamic loading or quick thermal biking.
4.2 Arising Patterns and Technological Integration
The future of alumina ceramic rings depends on smart combination and accuracy manufacturing.
Trends consist of:
Additive manufacturing (3D printing) of alumina elements, allowing complex interior geometries and customized ring styles formerly unachievable with conventional methods.
Functional grading, where structure or microstructure differs throughout the ring to enhance performance in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking using ingrained sensing units in ceramic rings for predictive upkeep in industrial machinery.
Enhanced use in renewable resource systems, such as high-temperature fuel cells and concentrated solar energy plants, where product integrity under thermal and chemical tension is critical.
As markets require higher performance, longer lifespans, and minimized upkeep, alumina ceramic rings will remain to play a crucial duty in enabling next-generation design options.
5. Vendor
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina machining, please feel free to contact us. (nanotrun@yahoo.com)
