1. Product Fundamentals and Structural Attributes of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

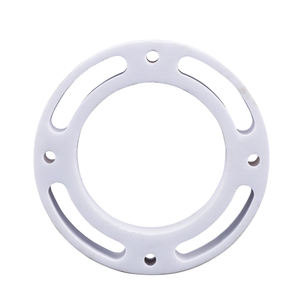

(Alumina Ceramic Substrates)
Alumina ceramic substrates, primarily made up of aluminum oxide (Al ₂ O TWO), function as the foundation of modern-day electronic product packaging because of their outstanding equilibrium of electrical insulation, thermal stability, mechanical stamina, and manufacturability.
One of the most thermodynamically stable stage of alumina at high temperatures is diamond, or α-Al Two O THREE, which crystallizes in a hexagonal close-packed oxygen lattice with light weight aluminum ions occupying two-thirds of the octahedral interstitial websites.
This dense atomic setup imparts high solidity (Mohs 9), outstanding wear resistance, and strong chemical inertness, making α-alumina ideal for severe operating environments.
Business substrates typically contain 90– 99.8% Al ₂ O TWO, with small additions of silica (SiO TWO), magnesia (MgO), or uncommon earth oxides utilized as sintering help to advertise densification and control grain growth throughout high-temperature handling.
Greater pureness grades (e.g., 99.5% and above) display exceptional electric resistivity and thermal conductivity, while lower purity variants (90– 96%) supply affordable remedies for less demanding applications.
1.2 Microstructure and Flaw Design for Electronic Reliability
The performance of alumina substratums in digital systems is seriously depending on microstructural harmony and flaw minimization.
A fine, equiaxed grain structure– typically varying from 1 to 10 micrometers– makes certain mechanical integrity and decreases the possibility of crack propagation under thermal or mechanical stress and anxiety.
Porosity, particularly interconnected or surface-connected pores, need to be lessened as it degrades both mechanical toughness and dielectric efficiency.
Advanced handling strategies such as tape spreading, isostatic pressing, and regulated sintering in air or controlled ambiences make it possible for the production of substrates with near-theoretical density (> 99.5%) and surface roughness listed below 0.5 µm, vital for thin-film metallization and cable bonding.
Furthermore, pollutant segregation at grain limits can lead to leakage currents or electrochemical movement under prejudice, requiring strict control over basic material pureness and sintering conditions to make certain long-lasting reliability in humid or high-voltage environments.
2. Manufacturing Processes and Substratum Manufacture Technologies

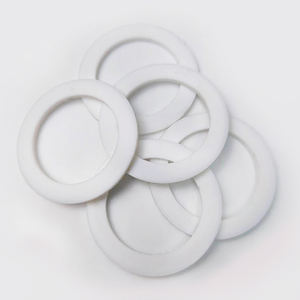

( Alumina Ceramic Substrates)
2.1 Tape Spreading and Eco-friendly Body Handling
The manufacturing of alumina ceramic substrates begins with the preparation of an extremely spread slurry containing submicron Al two O two powder, organic binders, plasticizers, dispersants, and solvents.
This slurry is refined through tape spreading– a continual technique where the suspension is topped a moving carrier movie utilizing a precision physician blade to accomplish consistent thickness, typically in between 0.1 mm and 1.0 mm.
After solvent evaporation, the resulting “environment-friendly tape” is flexible and can be punched, drilled, or laser-cut to form by means of openings for vertical interconnections.
Several layers might be laminated flooring to develop multilayer substratums for complicated circuit integration, although most of commercial applications utilize single-layer configurations as a result of set you back and thermal expansion factors to consider.
The green tapes are then thoroughly debound to remove organic ingredients with controlled thermal decomposition before last sintering.
2.2 Sintering and Metallization for Circuit Combination
Sintering is conducted in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore removal and grain coarsening to attain full densification.
The direct shrinking throughout sintering– usually 15– 20%– need to be precisely forecasted and made up for in the style of green tapes to make sure dimensional accuracy of the last substratum.
Adhering to sintering, metallization is put on develop conductive traces, pads, and vias.
Two key approaches dominate: thick-film printing and thin-film deposition.
In thick-film modern technology, pastes consisting of metal powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substrate and co-fired in a reducing atmosphere to create robust, high-adhesion conductors.
For high-density or high-frequency applications, thin-film processes such as sputtering or dissipation are utilized to deposit adhesion layers (e.g., titanium or chromium) adhered to by copper or gold, enabling sub-micron patterning through photolithography.
Vias are full of conductive pastes and fired to develop electrical affiliations between layers in multilayer styles.
3. Useful Residences and Performance Metrics in Electronic Equipment
3.1 Thermal and Electrical Behavior Under Functional Tension
Alumina substrates are valued for their positive combination of moderate thermal conductivity (20– 35 W/m · K for 96– 99.8% Al Two O FIVE), which enables effective warmth dissipation from power gadgets, and high quantity resistivity (> 10 ¹⁴ Ω · cm), guaranteeing very little leakage current.
Their dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is steady over a vast temperature level and regularity range, making them suitable for high-frequency circuits as much as several gigahertz, although lower-κ products like aluminum nitride are preferred for mm-wave applications.
The coefficient of thermal development (CTE) of alumina (~ 6.8– 7.2 ppm/K) is sensibly well-matched to that of silicon (~ 3 ppm/K) and certain packaging alloys, lowering thermo-mechanical tension throughout device operation and thermal cycling.
Nevertheless, the CTE mismatch with silicon stays a concern in flip-chip and direct die-attach arrangements, frequently needing certified interposers or underfill materials to minimize exhaustion failure.
3.2 Mechanical Effectiveness and Ecological Sturdiness
Mechanically, alumina substrates show high flexural stamina (300– 400 MPa) and exceptional dimensional stability under tons, enabling their use in ruggedized electronics for aerospace, automobile, and commercial control systems.
They are immune to vibration, shock, and creep at elevated temperature levels, preserving architectural stability up to 1500 ° C in inert environments.
In humid atmospheres, high-purity alumina reveals very little dampness absorption and outstanding resistance to ion migration, making certain long-lasting dependability in exterior and high-humidity applications.
Surface hardness likewise shields against mechanical damages throughout handling and assembly, although care has to be required to avoid edge chipping due to inherent brittleness.
4. Industrial Applications and Technological Influence Throughout Sectors
4.1 Power Electronic Devices, RF Modules, and Automotive Systems
Alumina ceramic substrates are ubiquitous in power digital components, including shielded gateway bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they offer electrical seclusion while promoting heat transfer to heat sinks.
In superhigh frequency (RF) and microwave circuits, they function as carrier platforms for crossbreed integrated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks because of their stable dielectric properties and low loss tangent.
In the vehicle market, alumina substrates are utilized in engine control systems (ECUs), sensing unit packages, and electric lorry (EV) power converters, where they sustain heats, thermal biking, and exposure to corrosive fluids.
Their dependability under harsh conditions makes them essential for safety-critical systems such as anti-lock braking (ABDOMINAL MUSCLE) and advanced driver assistance systems (ADAS).
4.2 Medical Instruments, Aerospace, and Emerging Micro-Electro-Mechanical Solutions
Beyond customer and commercial electronic devices, alumina substratums are used in implantable clinical tools such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are paramount.
In aerospace and protection, they are used in avionics, radar systems, and satellite communication components due to their radiation resistance and stability in vacuum cleaner environments.
In addition, alumina is increasingly used as an architectural and protecting platform in micro-electro-mechanical systems (MEMS), consisting of stress sensors, accelerometers, and microfluidic tools, where its chemical inertness and compatibility with thin-film handling are advantageous.
As digital systems continue to require higher power thickness, miniaturization, and reliability under extreme conditions, alumina ceramic substratums continue to be a cornerstone product, bridging the space between performance, expense, and manufacturability in sophisticated digital packaging.
