1. Product Attributes and Architectural Layout
1.1 Make-up and Crystalline Phases of Alumina

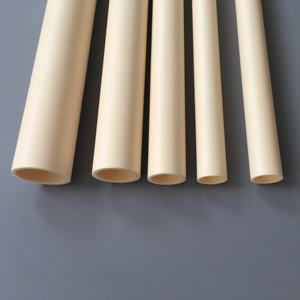

( Alumina Ceramic Tubes)
Alumina (Al Two O SIX) ceramic tubes are mainly produced from high-purity aluminum oxide, with purity levels usually ranging from 90% to 99.8%, depending on the designated application.
The leading crystalline phase in totally dense, high-temperature sintered tubes is α-alumina (corundum), which shows a trigonal crystal structure and phenomenal thermodynamic security.
This phase change from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs over 1100 ° C and results in a thick, interlacing microstructure that offers exceptional mechanical strength and chemical resistance.
Higher pureness grades (≥ 99.5%) take full advantage of solidity, put on resistance, and dielectric performance, while lower-purity solutions may include second phases like mullite or glassy grain boundary phases to reduce expense or tailor thermal growth.
The capability to control grain size, porosity, and stage structure throughout handling permits engineers to make improvements alumina tubes for certain practical demands throughout varied industrial domains.
1.2 Mechanical, Thermal, and Electrical Characteristic
Alumina ceramic tubes exhibit a distinct mix of physical residential or commercial properties that make them essential in demanding engineering atmospheres.
With a Vickers firmness surpassing 1500 HV, they are highly resistant to abrasion and erosion, outshining most metals and polymers in wear-prone systems.
Their compressive toughness can get to 2000 MPa, allowing architectural usage under high mechanical loads, while flexural strength commonly ranges from 300 to 500 MPa, depending on thickness and surface finish.
Thermally, alumina preserves stability up to 1700 ° C in oxidizing ambiences, with a low coefficient of thermal expansion (~ 8 ppm/K), contributing to exceptional thermal shock resistance when properly developed.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to steels or aluminum nitride, it suffices for numerous high-temperature applications where electrical insulation and architectural stability are focused on.
Electrically, alumina is an outstanding insulator with volume resistivity > 10 ¹⁴ Ω · centimeters and high dielectric toughness (> 15 kV/mm), making it optimal for electric feedthroughs, sensing unit real estates, and high-voltage insulation.

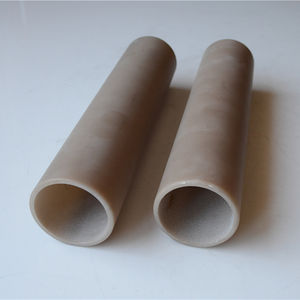

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Creating Strategies
The manufacturing of alumina ceramic tubes involves advanced forming approaches tailored to attain precise dimensions, wall density harmony, and surface area high quality.
Usual techniques include extrusion, isostatic pressing, and slip casting, each suited to various dimension varieties and efficiency requirements.
Extrusion is commonly utilized for long, straight tubes with regular cross-sections, where a plasticized alumina paste is required through a die and cut to size before drying out and sintering.
For high-precision or thin-walled tubes, chilly isostatic pushing (CIP) uses uniform pressure from all directions to portable eco-friendly bodies, minimizing distortion and boosting density homogeneity.
Slide spreading, entailing the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is optimal for facility or large-diameter geometries with variable wall density.
After creating, tubes undertake mindful drying out to stop fracturing, followed by binder fatigue and high-temperature sintering (1500– 1650 ° C )to accomplish complete densification and dimensional security.
2.2 Completing and Quality Assurance
Post-sintering procedures such as centerless grinding, splashing, and polishing are used to attain limited tolerances, smooth surface coatings, and precise internal and outer sizes.
Resistances as limited as ± 0.01 mm are possible for essential applications in semiconductor processing or analytical instrumentation.
Surface roughness can be decreased to Ra < 0.1 µm, reducing fragment capturing and enhancing compatibility with ultra-high vacuum cleaner (UHV) or cleanroom environments.
Non-destructive testing approaches– consisting of ultrasonic evaluation, X-ray radiography, and color penetrant testing– ensure architectural honesty and absence of cracks or spaces.
Dimensional metrology utilizing coordinate measuring makers (CMM) or laser scanning verifies conformity with style specs, especially for personalized or high-volume production runs.
3. Functional Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among one of the most compelling advantages of alumina ceramic tubes is their capability to hold up against severe thermal and chemical problems where metals and polymers fall short.
They remain dimensionally steady and mechanically robust in continual solution at temperature levels over 1500 ° C, making them suitable for furnace linings, thermocouple protection sheaths, and radiant heating system tubes.
Their inertness to molten metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), molten salts, and several acids (other than hydrofluoric and warm phosphoric acid) allows use in metallurgical and chemical handling devices.
In oxidizing and decreasing atmospheres, alumina does not break down or militarize undesirable responses, maintaining procedure pureness in semiconductor and glass production.
This chemical inertness additionally avoids contamination in high-purity fluid taking care of systems, including those made use of in pharmaceutical and food handling markets.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma atmospheres, alumina tubes serve as protecting barriers that keep circuit honesty under high voltage and elevated temperature.
They are made use of in high-intensity discharge (HID) lights, where they contain ionized gases at temperature levels going beyond 1000 ° C while enduring electric potentials of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric windows or gas distribution components, standing up to ion bombardment and thermal biking without splitting or outgassing.
Their low dielectric loss and high arc resistance prevent electric monitoring and malfunction, guaranteeing long service life in switchgear and power transmission parts.
These residential or commercial properties are crucial in maintaining process security and tools dependability in sophisticated manufacturing and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Commercial Handling Systems
Alumina ceramic tubes are important to a wide range of industrial processes that demand longevity under extreme conditions.
In thermal handling, they function as safety sheaths for thermocouples and heating elements in kilns, heaters, and heat therapy equipment, shielding sensitive components from harsh ambiences and mechanical wear.
In liquid handling, they transfer aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables rapid heating and cooling down cycles without failure, a crucial benefit in cyclic industrial procedures.
In glass production, alumina tubes direct liquified glass flows and assistance creating equipment, withstanding erosion from thick, high-temperature thaws.
4.2 Advanced Technologies and Future Integration
Beyond conventional commercial usages, alumina tubes are locating new duties in innovative technologies.
In semiconductor construction, ultra-pure alumina tubes are used in chemical vapor deposition (CVD) reactors and ion implantation systems, where fragment generation and metal contamination should be minimized.
In clinical devices, biocompatible alumina tubes act as shielding parts in surgical tools, dental implants, and analysis sensors.
Research is exploring functionalized alumina tubes with ingrained sensing units or conductive traces for smart architectural monitoring in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is emerging as a method to create intricate tube geometries with interior networks or graded structures, making it possible for next-generation heat exchangers and microreactors.
As industries push toward greater effectiveness, cleaner procedures, and greater integrity, alumina ceramic tubes continue to advance as allowing parts in the infrastructure of modern-day innovation.
In recap, alumina ceramic tubes represent a mature yet dynamically advancing course of engineered products, incorporating outstanding thermal, mechanical, and electrical efficiency in a single inorganic avenue.
Their flexibility across extreme atmospheres guarantees their ongoing significance in both established industrial systems and emerging sophisticated applications.
