International Industrial Pipe Valves: A Side-by-Side Comparison of Major Categories
With the constant development of industrial facilities globally– from metropolitan water networks and long-distance oil and gas pipes to petrochemical plants and fire defense systems– shutoffs, pipes, and fittings continue to be the unhonored heroes that maintain every little thing flowing. For procurement specialists and designers, the difficulty is actual: when confronted with Ball Valves, Butterfly Valves, Gateway Valves, Globe Valves, Inspect Shutoffs, Control Valves, and Fire Protection Valves, how do you choose the best one for the task? The response relies on a handful of elements– media characteristics, how commonly you run the shutoff, pressure and temperature rankings, and the room you have for installation.
Datang, as a producer running with its own independent site, has actually long focused on supplying a full package: valves of all major types, Stainless Steel Pipes and Carbon Steel Piping, and a complete lineup of Pipeline Fittings. This article walks you through a detailed contrast of the seven most preferred shutoff groups, touches on the bottom lines of pipe material option, and briefly covers fitting connection methods– all to offer you a clear path via the labyrinth of commercial piping system choices.
1. Deep Study the Seven Significant Shutoff Categories
1.1 Ball Valves– The Versatile Workhorse for Shut-Off Applications
A Sphere Shutoff makes use of a spherical closure unit with a bore with its facility, revolving 90 degrees to open up or shut the circulation path. Its international appeal is no crash– it combines reduced circulation resistance, fast quarter-turn operation, and dependable sealing efficiency. The valve seats are generally made from PTFE or enhanced polymers, which work perfectly in clean media, gases, water, and gently destructive environments. For high-pressure, large-diameter applications, the trunnion-mounted sphere design is the best option; for smaller, economical lines, the drifting sphere arrangement gets the job done just great.
That stated, Ball Valves have their restrictions. Since the sealing counts on line call between the round surface and the seat, any unpleasant particles in the media can easily scratch the surface and cause inner leak. That makes them a poor suitable for slurry, untreated distributing water, or any stream carrying solids. At heats, polymer seats may sneak or flaw, which is why metal-seated or fire-safe styles end up being essential.

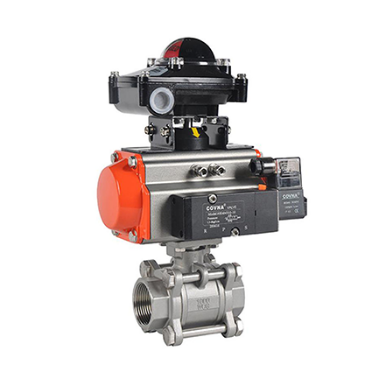

(Ball Valves)
Common applications: gas circulation stations, refinery line of product, city gas networks, and detoxified water supply.
What Datang offers: Stainless Steel (304/316L) and Carbon Steel (WCB) options, floating and trunnion-mounted types, fire-safe and anti-static frameworks, and both split-body and welded-body layouts, with size varieties from DN15 up to DN600.
1.2 Butterfly Valves– The Smart Selection for Large-Diameter Water Solution
A Butterfly Valve makes use of a disc that rotates within the valve body to control circulation. Its biggest marketing points? Portable framework, lightweight, and marginal installment room– especially in big sizes (DN200 and over), where it plainly outshines Ball Valves and Gateway Valves in cost-effectiveness. Sealing can be soft (lined with rubber or PTFE) or tough (metal-to-metal). Soft-seated types are great for clean water at space temperature level, while hard-seated versions take care of vapor or gently rough media at higher temperature levels.
The drawbacks? Even fully open, the disc remains in the circulation path, producing visible resistance. Plus, sealing relies on the elasticity of the seat or eccentric compression, so under high stress, it doesn’t match the rigidity of Sphere Valves or Entrance Valves. Triple-offset designs boost sealing performance substantially, yet they also push the rate up.
Common applications: water therapy plant inlet/outlet mains, cooling down water recirculation systems, HVAC chilled water headers, and large-diameter ventilation air ducts.
What Datang provides: wafer, lug, and flange link kinds; soft-seated versions with EPDM, NBR, or PTFE linings; hard-seated multi-layer steel styles; pressure ratings from PN10 to PN40.
(Butterfly Valves)
1.3 Gateway Valves– The Standard Favorite for Low-Resistance Shut-Off
An Entrance Valve runs by lifting a gate or wedge backwards and forwards within the body to obstruct or open up the flow. Its standout feature is the straight-through flow course, which gives it the most affordable circulation resistance among all valve kinds– making it the default option for pipelines where pressure decline is a major problem. That claimed, Entrance Valves aren’t made for regular procedure. The traveling is long, the activity is sluggish, and each cycle wears the securing surface areas as the gate slides versus the seats.
Gateway Shutoffs come in rising-stem and non-rising-stem arrangements. Rising-stem types allow you see the shutoff position at a glance, making them optimal for above-ground piping; non-rising-stem types save clearance and work well in hidden or restricted areas. Wedge-type gates produce tighter seals as they close, taking care of high-temperature heavy steam lines with ease, while parallel-slide gateways are better fit for low-pressure, large-diameter water supply.
Typical applications: nuclear power plant main heavy steam lines, petroleum transmission block shutoffs, wastewater plant inlet/outlet headers, and fire pump discharge lines.
What Datang supplies: cast steel and Stainless-steel rising-stem and non-rising-stem Entrance Shutoffs, wedge and parallel-slide designs, with bevel equipment or electric actuator options for remote operation.
(Gate Valves)
1.4 World Valves– The Reputable Partner for Specific Throttling
A Globe Shutoff uses a disc that relocates linearly along the seat centerline, readjusting the circulation area to regulate the media. The interior flow course forces the media to change direction, which develops high resistance and substantial pressure drop– that’s the major downside. Yet that exact same tortuous path provides the World Shutoff something its rivals can not match: outstanding throttling accuracy. And when completely closed, the disc and seat create a self-tightening seal with impressive reliability.
Globe Valves be available in right, angle, and Y-pattern styles. The Y-pattern version angles the stem at 45 levels to the flow, reducing resistance and making it ideal for regular guideline. The disc account can be cone-shaped, needle-shaped, or parabolic, relying on the flow attributes you require.
Typical applications: boiler feedwater guideline, heavy steam desuperheating stations, chemical reactor feed control, and pressed air branch line throttling.
What Datang supplies: T-pattern, angle, and Y-pattern World Valves, with disc encounters hard-faced with cobalt-based alloys for wear resistance; manual handwheel, bevel equipment, or pneumatically-driven diaphragm actuator options.
(Globe Valves)
1.5 Inspect Shutoffs– The Passive Safety Obstacle
An Inspect Valve is completely automated– it opens up with forward circulation and closes by gravity or spring force when circulation turns around, stopping heartburn. At pump discharges, compressor outlets, and parallel equipment trains, Examine Valves are the necessary security device that safeguards expensive machinery from reverse rotation or water hammer damages.
Swing-type Check Valves have a disc that rotates on a joint pin, providing low circulation resistance and matching large-diameter straight or upright lines. Lift-type Check Shutoffs guide the disc up and down along an overview slot– they seal tighter yet have higher resistance, making them a far better fit for small-diameter, high-pressure systems. Dual-plate Check Shutoffs feature 2 semicircular discs that swing around an usual pivot, closing rapidly with a compact footprint; they’re the fastest-growing type in oil, gas, and chemical jobs. One thing to watch: fast closure can trigger water hammer, so in high-lift pump terminals, designs with dashpot dampers or slow-closing mechanisms are worth considering.
Common applications: pump discharge anti-backflow, vapor trap systems, fire pump outlet lines, and chemical plant shot factors.
What Datang provides: swing-type, lift-type, and dual-plate Examine Valves, with counterweight or hydraulic dashpot options for sluggish closure; products including Carbon Steel, Stainless Steel, and duplex steel.

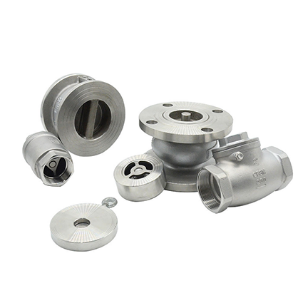

(Check Valves)
1.6 Control Valves– The Last Act in Refine Automation
A Control Valve is the end-element in an automated control loop. It takes a signal from the controller, relocates the actuator, and adjusts the valve plug placement to regulate circulation, stress, temperature level, or fluid level. The real elegance depends on the circulation characteristic curve (linear, equal-percentage, or quick-opening) and the shutoff’s capacity to talk to the control system.
Typical body types include straight single-seat, straight double-seat, cage-guided, and angle shutoffs. Single-seat shutoffs supply low leak yet can’t take care of high differential pressure; double-seat valves tolerate greater stress declines yet leak extra; cage-guided valves run quieter and deal with vibration far better. With the rise of industrial IoT, clever positioners currently sustain HART, Profibus, and Modbus protocols, giving plant drivers real-time feedback and analysis information.
Normal applications: chemical activator temperature control, nuclear power plant feedwater flow regulation, natural gas pressure-reducing stations, and wastewater aeration control.
What Datang provides: single-seat, double-seat, and cage-guided Control Valve bodies, with electrical or pneumatic diaphragm actuators; trim products adjustable for anti-cavitation and anti-erosion needs.
(Control Valves)
1.7 Fire Protection Valves– A Regulatory-Driven Requirement
Fire Security Valves are specifically developed for automatic sprinkler systems, fire hydrant networks, and fire pump settings up. What sets them apart from common shutoffs is the need for rapid activation under emergency situation problems, rock-solid dependability, and plainly defined pressure setups. Common kinds include fire-rated Entrance Shutoffs, fire-rated Butterfly Valves, deluge shutoffs, damp alarm shutoffs, and pressure-reducing valves.
The choice reasoning below is different from industrial valves– it’s driven much less by the media itself and even more by the system kind (wet, dry, pre-action, or deluge) and the danger classification you’re securing. Since these systems sit still for long periods, interior leak and corrosion-induced sticking are the primary failing risks. That’s why rust-proofing, seal product aging cycles, and convenience of regular testing ended up being leading concerns.
Normal applications: skyscraper sprinkler risers, petrochemical plant fire loopholes, underground energy passage fire areas, and tank ranch foam systems.
What Datang provides: fire-rated Gate Shutoffs and Butterfly Valves with internal and exterior epoxy finish; alarm valves full with retard chambers, water motor gongs, and pressure buttons; fully suitable with Fire Combating Pipelines and Grooved Fittings for a complete system service.

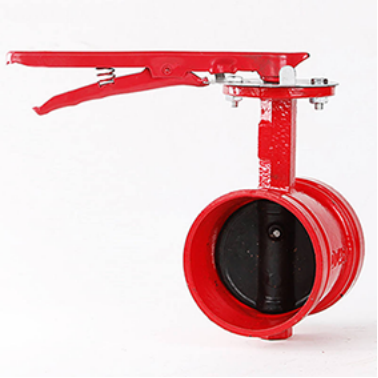

(Fire Protection Valves)

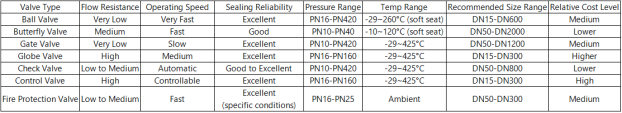

Quick Contrast Table– 7 Significant Valve Classifications at a Glimpse
(Major Valve Categories Comparison)
Note: The figures above are basic sector recommendations. Real efficiency depends upon product selection, securing design, and manufacturing accuracy.
2. Just How Pipe Product Option Functions with Your Valve System
Once you’ve picked the valve types, matching the piping product is the following critical step. Pipelines aren’t just channels– their inside surface finish straight impacts how well your shutoffs seal, and their wall surface density establishes the system’s stress limit.
2.1 Stainless-steel Pipes– The Go-To for Corrosive Provider
Stainless Steel Pipes offer outstanding resistance to consistent rust and pitting, making them a staple in chemical handling, food and pharmaceutical sanitary lines, and offshore applications. Austenitic qualities like 304/304L and 316/316L are one of the most usual; 316L, with its molybdenum enhancement, takes care of chloride-bearing atmospheres far better than 304. When you’re running Stainless Steel Pipes, the valve bodies and internal trim need to additionally be stainless to avoid galvanic deterioration between dissimilar steels.
Welded and flanged connections are the two major options for Stainless-steel Water Lines. Welding offers you a leak-tight, smooth birthed, though it calls for argon protecting on-site; flanged joints are simpler to uncouple for upkeep, however you require to make sure the gasket product works with the media.
Typical markets: great chemicals, pharmaceuticals, bio-fermentation, seawater desalination, and food and drink.
Datang’s approach: Stainless-steel Valves + Stainless Steel Water Lines + Stainless Steel Pipe Fittings– a totally incorporated corrosion-resistant system that leaves no weak spots.
2.2 Carbon Steel Piping– The Heavy Lifter for Energy and Heavy Industry
Carbon Steel Pipeline incorporate high stamina with strong cost-effectiveness, making them the leading choice in oil, gas, power generation, and area home heating. Common requirements consist of ASTM A53, A106, and API 5L, covering numerous stress courses and low-temperature durability requirements. The primary downside? Rust resistance is limited. In damp settings or when carrying corrosive liquids, you’ll need external coatings and interior linings for defense.
When it involves connecting Carbon Steel Water lines to valves, welding or butt-welding is the standard for high-pressure systems– joint stamina needs to match the parent product. In tool- to low-pressure water and fire systems, flanged and grooved links are much more typical. Something to enjoy: see to it the pressure class of your pipes and shutoffs match. If your pipeline is ranked Class 150 but your shutoff is Course 300, it’s overkill without including any kind of value; if the valve is lower-rated than the pipeline, it comes to be the system’s weakest web link.
Normal markets: long-distance oil/gas pipes, main heating networks, industrial vapor lines, and compressed air headers.
Datang’s technique: Carbon Steel Pipeline and installations rated to the same stress courses (Class 150/300/600) as our valves, with seamless and welded options offered, covering all wall thicknesses per ASME B36.10.

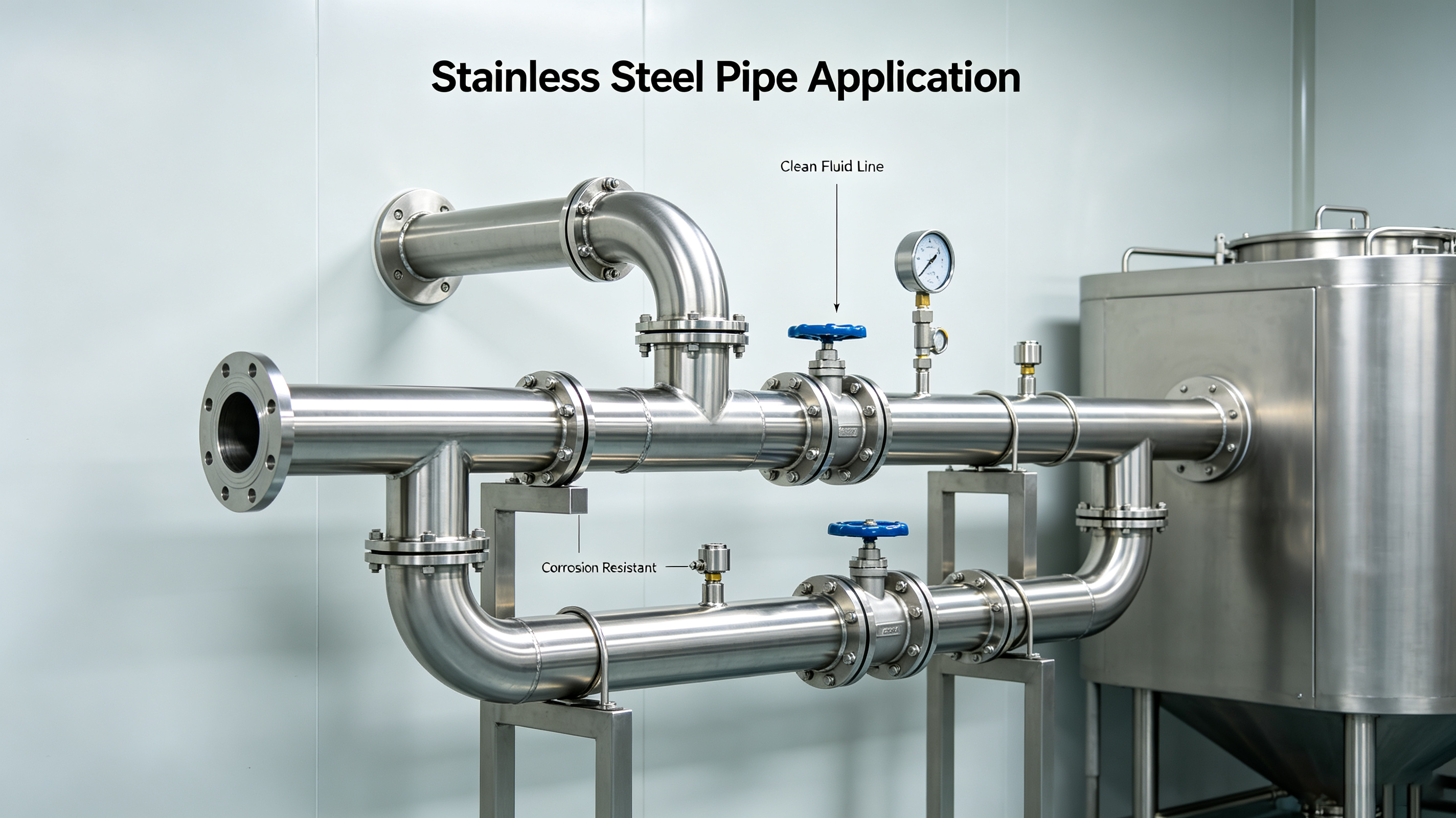

( Pipe Application)
2.3 Fire Combating Pipelines– A Specialized Group of Its Own
Fire Battling Pipelines are mainly carbon steel or galvanized carbon steel, but they follow their own collection of standards for deterioration security and pressure screening. NFPA demands normally require internal galvanizing or epoxy finishing to stand up to inner rust from long-lasting water call. Outside coating relies on whether the pipe is hidden, exposed inside your home, or mounted outdoors.
An additional key distinction: hydrostatic test pressure for Fire Fighting Pipelines is generally 1.5 times the working stress, held for a specified time to verify system integrity. When Datang materials both Fire Protection Valves and Fire Battling Pipelines, we can do a pre-shipment joint stress test to confirm the entire system does as created before it ever before reaches your site.
Datang’s strategy: fire-rated Gate/Butterfly Valves + internally/externally coated Fire Battling Pipes + Grooved Fittings– a total chain from pump room to sprinkler heads, reducing purchase complexity.

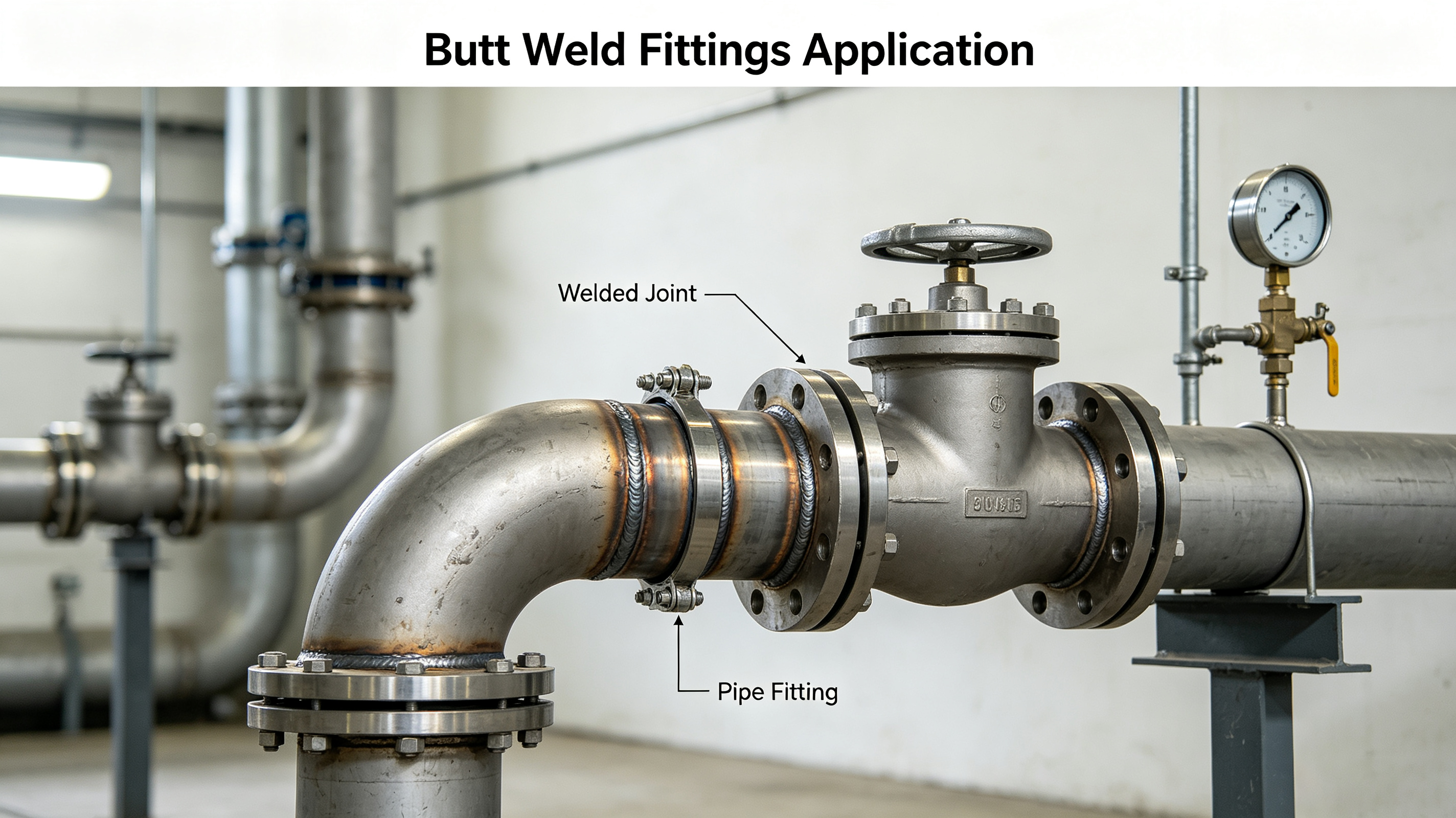

( Butt Weld Fittings Application Application)
3. A Quick Look at Pipe Fittings Connection Approaches
A piping system isn’t simply valves and pipes– you additionally need installations to change instructions, minimize or increase the size of sizes, produce branches, and attach parts. The ideal fitting selection can make or damage your installation efficiency and long-term integrity.
▪ Stainless-steel Pipeline Fittings: including arm joints, tees, concentric/eccentric reducers, and caps– made from the exact same stainless qualities as the pipelines and joined by welding to keep deterioration resistance intact at the joints. Perfect for food, chemical, and hygienic systems.
▪ Flanges: the most typical bolted link, using very easy disassembly and compatibility with a large range of valves and devices. Face types consist of RF (elevated face), FF (level face), and RTJ (ring-type joint)– gaskets require to match temperature level and stress conditions. Datang materials Flanges that are fully suitable with our shutoffs and pipelines (ANSI/DIN/JIS criteria), so you don’t encounter bolt-hole imbalance or dissimilar sealing faces during setup.
▪ Grooved Fittings: these use a mechanical coupling and a gasket to create a quick, bolt-free link. After roll-grooving the pipeline finishes, you break in the gasket and tighten up the coupling. This technique is a favorite in fire defense and water supply systems– setup is significantly faster than welding, and the joint enables some angular deflection, which gives it suitable seismic resistance. Quality assurance below focuses on groove depth and width accuracy, plus the compression proportion design of the rubber gasket.
▪ Butt Weld Fittings: constructed for serious services– high temperature, high pressure, and thermal biking– like nuclear power plant major steam headers and refinery heater inlets/outlets. Butt Weld Fittings match the wall density of the parent pipe and use full-penetration welds that develop joint toughness equivalent to the base material. Wall surface thickness option and bevel prep work are vital to weld quality. Datang provides these installations with properly machined bevels and end caps for defense, all set for field fit-up and welding.

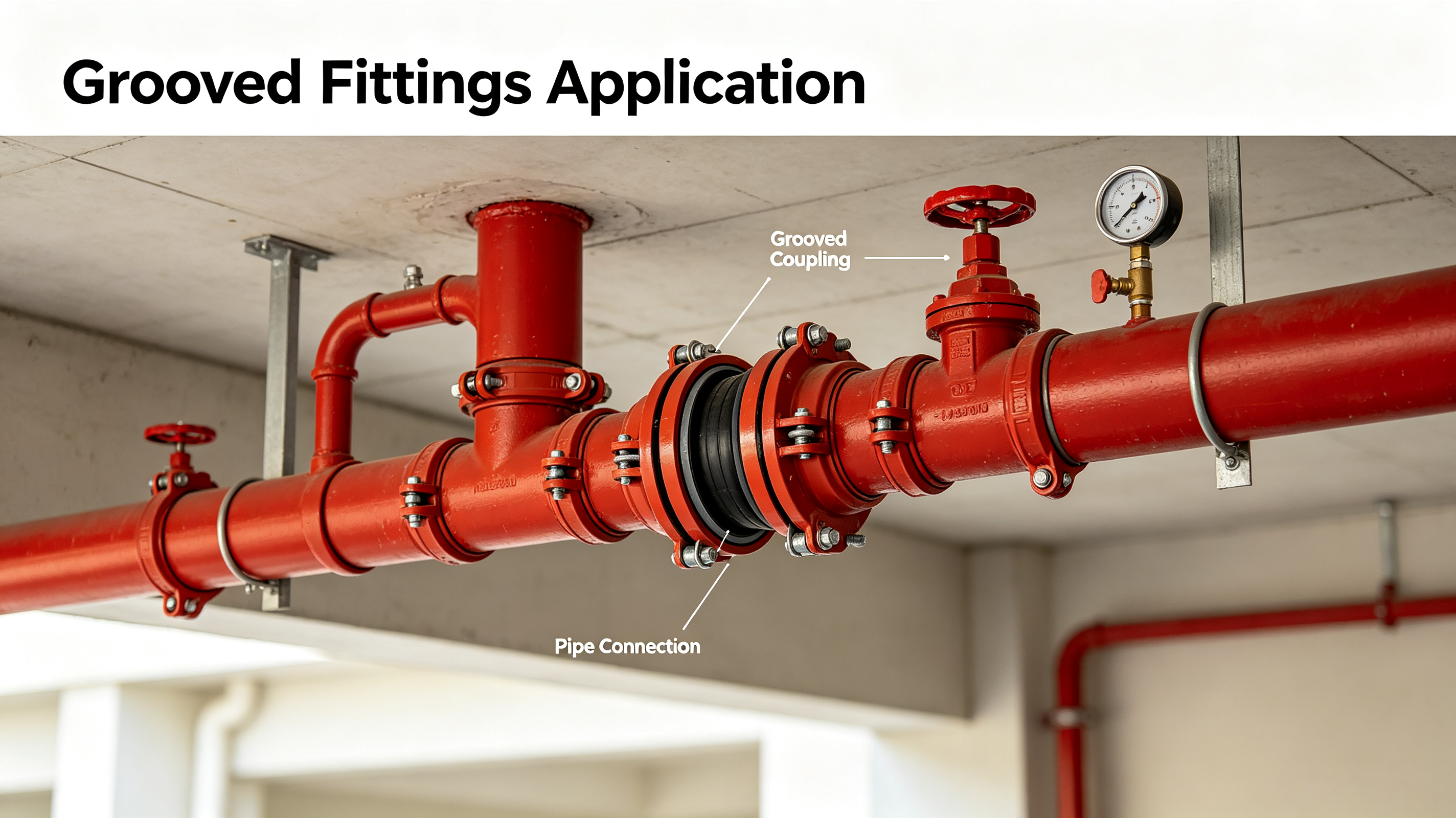

( Grooved Fittings Application Application)
Bringing all of it together: a commercial piping system is far more than just a pile of shutoff products. Whether you’re weighing the quick shut-off of a Round Shutoff versus the low resistance of a Gate Valve, choosing between the throttling precision of a Globe Valve and the automated intelligence of a Control Valve, or fulfilling the conformity needs of Fire Security Valves– every group has its very own pleasant place. And the pipes and installations that connect them together are just as essential. Picking the appropriate materials and connection techniques guarantees your valves can actually supply the efficiency you’re counting on.
Datang, operating via our very own independent internet site, brings valves, pipes, and fittings right into one combined product profile, offering purchase groups an easier, a lot more consistent method to resource total systems. There’s no global “finest”– just the ideal fit for your media, pressure, temperature level, operating regularity, and setup restrictions. That’s the logic that causes systems that are both secure and cost-effective over time.
