Bearings are commonly called the “joints of sector.” Obtaining the selection right straight affects your tools’s integrity, service life, and upkeep prices. Lots of bearing failures do not come from low quality– they originate from wrong choices. Points like load calculation mistakes, overlooking rate limits, or selecting the incorrect lubrication approach. These little errors can cause equipment to break down early in its life span. This guide walks you through the whole option procedure, providing engineers and procurement professionals a clear path from analyzing working conditions to verifying the appropriate bearing design.
Part One: What You Required to Know Before Starting
Before you open up any type of bearing brochure, ask on your own one inquiry: Exactly what does this machine require the birthing to do? The response hinges on 5 crucial areas:
1. Tons Qualities
Lots is the top consider birthing selection. You need to identify 3 things:
Instructions: Is it radial lots (perpendicular to the shaft), axial lots (parallel to the shaft), or a mix of both?
Size: Is it light, moderate, or heavy? Any kind of effect lots?
Nature: Is the lots constant or altering? How frequently do impact lots happen and just how solid are they?
Take a belt conveyor as an example. The bearings at the drive end take on radial loads from belt stress, the weight of the belt and rollers, plus the shaft setting up. When determining, you need to think about various operating conditions– startup, regular operating, braking– and make use of the worst-case scenario for your design.
2. Rate Problems

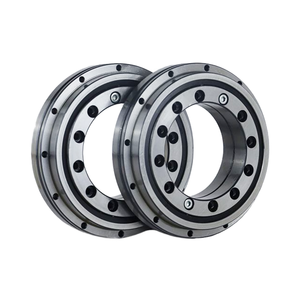

(bearings for steel mill)
Rate is another vital factor affecting birthing life. According to exhaustion life theory, birthing life has an inverted connection with speed. For variable rate conditions, you require to determine the comparable speed. Take a rotary kiln assistance roller– its rate may range from 0.5 to 2.5 r/min. You ‘d need to weight the running time at each rate to obtain an equivalent value.
Something to look out for: understanding only the maximum speed can ruin your lubrication method. The lubricant you select based on full throttle might not form a proper oil movie at lower rates. Additionally, if your machine has long idle durations, you need to discuss that– otherwise nearby equipment vibrations might create incorrect brinelling damages.
3. Required Life Span
Birthing life span is usually revealed as L10h (the number of hours that 90% of a bearing team will certainly get to prior to exhaustion spalling shows up). An usual error is choosing an extremely lengthy life– when L10h exceeds 100,000 hours, the bearing size gets as well huge. It comes to be more challenging to lube, torque boosts, and it becomes a lot more conscious minimum tons. In the end, it may fall short for reasons besides tiredness.
4. Room Constraints
You should understand your available area limitations from the beginning– shaft diameter array, real estate bore size, axial size limits. Once you understand the matching shaft diameter and readily available room, you can quickly limit your choices.
5. Running Precision Requirements
Many applications do simply fine with standard accuracy bearings. However, for high-speed or high-precision devices like machine device spindles, you’ll require P5, P4, or even higher grades. Just bear in mind that choosing greater precision without a real demand will certainly drive up expenses significantly. Suit the quality to your real requirements.
Part Two: Matching Bearing Kinds to Functioning Issues
Once you have those parameters clear, the next step is to match the best bearing kind based upon load direction, size, speed, and misalignment resistance.
1. Lots Instructions: Radial, Axial, or Integrated?

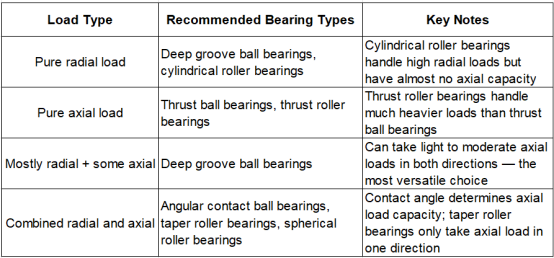

This is one of the most standard filter. It can direct you to a couple of candidates immediately:
When the axial-to-radial lots ratio (Fa/Fr) changes, your choice logic modifications too. At low ratios, go with deep groove sphere bearings. At moderate ratios, use small-contact-angle angular contact bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or take into consideration incorporating a drive bearing with a radial bearing.
( Radial)
2. Tons Dimension: Sphere Bearings or Roller Bearings?
This is a timeless choice:
Light or modest lots: Opt for sphere bearings (deep groove or angular contact). The point get in touch with in between rounds and raceways gives reduced rubbing, making them suitable for medium to high speeds.
Hefty or impact tons: You must make use of roller bearings (round, round, or taper). Line contact in between rollers and raceways provides a lot higher tons capability and better impact resistance.
3. Speed: Sphere Bearings for High Speed, Roller Bearings for Low
Generally talking, ball bearings have higher rate restrictions than roller bearings. For high-speed applications (above 1000 r/min), put ball bearings on top of your list. When you need the highest possible speed with pure radial lots, open deep groove ball bearings are your best option. For combined lots at high speed, angular get in touch with ball bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have reasonably lower speed restrictions. They’re mainly fit for low-to-medium speed, heavy-load conditions.
4. Misalignment Resistance: Do You Need Self-Aligning?
This one commonly obtains overlooked however it’s extremely essential. You should consider self-aligning bearings when:
Birthing real estate bores don’t align well
The shaft isn’t rigid sufficient and flexes throughout procedure
The bearing span is lengthy and thermal growth creates angular misalignment
You’re using separate split real estates (like cushion block bearings)
Spherical roller bearings and spherical round bearings have scooped outer ring raceways. This allows a particular amount of angular misalignment between the inner and outer rings without dangerous side stress and anxiety. They can compensate for both dynamic deflection and static installation mistakes.
On the various other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have very minimal self-aligning capacity. Also a little angular misalignment can trigger tension concentration at the roller finishes, causing high side pressures that substantially shorten birthing life. Deep groove round bearings do have some self-aligning capability, but the allowed angle is little– exceeding it will certainly decrease life as well.
5. Axial Development Settlement: Fixed End or Floating End?
Lengthy shafts broaden and agreement with temperature level adjustments during operation. That indicates you require to set up your bearing arrangement with one fixed end and one floating end.
NU and N series cylindrical roller bearings have no flanges on the inner ring (or on one side). This lets the shaft relocation openly in the axial instructions about the housing– making them perfect as floating-end bearings. NJ and NUP series can provide axial positioning in one or both instructions, so they work well as fixed-end bearings. This arrangement is really common in gearboxes and electrical motors.
Component 3: BMB Product Line at a Glimpse

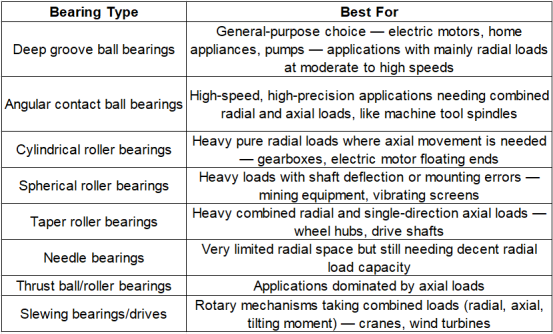

BMB offers a total range of commercial bearings, covering all the major kinds we’ve reviewed. This fast reference table connects the selection principles above straight to particular product categories:
Component 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Standard precision (P0) benefits the vast bulk of general equipment. For accuracy tools like device spindles or aerospace elements, you’ll need P5 or greater. Tighter accuracy suggests tighter dimensional resistances and far better running accuracy– but additionally greater costs.
2. Interior Clearance and Preload
Bearings require to maintain proper internal clearance after installment. Too much clearance causes resonance and noise. Inadequate, and thermal development can cause the bearing to seize. In diplomatic immunities like equipment tool pins, preload (applying unfavorable clearance) is used to enhance system strength and rotational precision.
3. Lubricant Selection
Lubrication is a make-or-break element for birthing life. Grease helps most moderate-speed and temperature applications– it’s straightforward to seal and can run maintenance-free for long periods. Oil (oil bathroom, oil haze, jet lubrication) is better for high-speed or high-temperature conditions, as it dissipates heat better. When picking a lubricating substance, check the rate factor (ndm worth). Don’t just pick based on maximum speed– the oil you pick could not create a proper movie at lower rates.
4. Securing Arrangements
Choose the seal kind based on your environment: call seals maintain dirt out well however add some friction; non-contact seals work for broadband but offer much less protection against contamination; open bearings rely upon exterior securing systems.
Part 5: Life Computation– From Concept to Technique
( or Combined Basic Filter Table)
At the end of the day, you require to confirm whether your chosen bearing will actually meet the anticipated life span. This is where fundamental rating life estimation can be found in.
The fundamental ranking life L10 formula (ISO 281 criterion):
For ball bearings: L10 = (C/P) ³ × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: standard dynamic tons ranking (kN)– discovered in the item brochure
P: equal dynamic load (kN)– takes both radial and axial loads into account
The comparable dynamic tons P is determined as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial load
X and Y are coefficients that rely on bearing kind and the Fa/Fr proportion– check the magazine for these values
For even more demanding problems, you can apply change variables: Ln = a1 × a2 × a3 × L10
a1 is the integrity aspect (a1 = 1 for 90% reliability, about 0.21 for 99%)
a2 is the material element (top quality bearing steel can reach 1.5 to 2)
a3 is the operating problems aspect (great lubrication and tidiness can provide 2 to 3)
With this computation, engineers can confirm that the selected bearing fulfills the needed service life. It also aids contrast numerous alternatives and make data-driven choices.
This guide has strolled you through the total selection course– from examining working conditions, to matching the ideal bearing kind, to verifying life span. Recognizing and applying this technique will certainly help you make exact, efficient, and affordable bearing choices throughout a vast array of commercial applications.
