1. Composition and Structural Features of Fused Quartz
1.1 Amorphous Network and Thermal Security

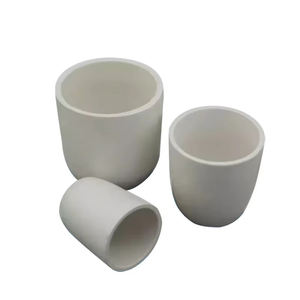

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from fused silica, an artificial type of silicon dioxide (SiO TWO) stemmed from the melting of natural quartz crystals at temperature levels exceeding 1700 ° C.
Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts extraordinary thermal shock resistance and dimensional security under fast temperature level changes.
This disordered atomic framework protects against bosom along crystallographic airplanes, making fused silica much less susceptible to splitting during thermal cycling contrasted to polycrystalline ceramics.
The material displays a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), among the lowest amongst engineering products, enabling it to withstand severe thermal slopes without fracturing– an essential property in semiconductor and solar battery production.
Integrated silica likewise keeps outstanding chemical inertness versus the majority of acids, molten steels, and slags, although it can be gradually etched by hydrofluoric acid and warm phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending on pureness and OH content) permits sustained operation at raised temperatures required for crystal development and steel refining procedures.
1.2 Pureness Grading and Micronutrient Control
The efficiency of quartz crucibles is extremely based on chemical pureness, particularly the concentration of metal contaminations such as iron, salt, potassium, light weight aluminum, and titanium.
Also trace amounts (parts per million level) of these impurities can migrate into liquified silicon throughout crystal development, weakening the electric properties of the resulting semiconductor product.
High-purity qualities used in electronics producing commonly include over 99.95% SiO TWO, with alkali steel oxides limited to less than 10 ppm and shift metals below 1 ppm.
Contaminations stem from raw quartz feedstock or handling equipment and are minimized through cautious option of mineral resources and filtration strategies like acid leaching and flotation.
In addition, the hydroxyl (OH) web content in fused silica influences its thermomechanical habits; high-OH types use much better UV transmission however reduced thermal security, while low-OH variants are chosen for high-temperature applications because of lowered bubble formation.

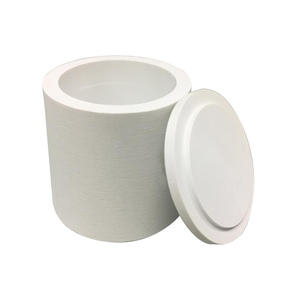

( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Style
2.1 Electrofusion and Forming Methods
Quartz crucibles are mostly produced through electrofusion, a procedure in which high-purity quartz powder is fed into a rotating graphite mold within an electrical arc heating system.
An electrical arc created in between carbon electrodes thaws the quartz particles, which solidify layer by layer to create a seamless, thick crucible form.
This approach produces a fine-grained, uniform microstructure with minimal bubbles and striae, essential for uniform warm circulation and mechanical integrity.
Alternative techniques such as plasma blend and flame combination are made use of for specialized applications requiring ultra-low contamination or specific wall surface thickness accounts.
After casting, the crucibles undertake regulated air conditioning (annealing) to ease inner anxieties and prevent spontaneous splitting during service.
Surface area completing, consisting of grinding and brightening, ensures dimensional accuracy and minimizes nucleation websites for undesirable condensation during usage.
2.2 Crystalline Layer Design and Opacity Control
A defining function of contemporary quartz crucibles, especially those utilized in directional solidification of multicrystalline silicon, is the crafted internal layer structure.
During production, the inner surface is frequently dealt with to advertise the development of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first home heating.
This cristobalite layer serves as a diffusion obstacle, minimizing straight interaction between molten silicon and the underlying integrated silica, consequently minimizing oxygen and metallic contamination.
In addition, the presence of this crystalline phase improves opacity, enhancing infrared radiation absorption and promoting more consistent temperature distribution within the thaw.
Crucible designers meticulously stabilize the density and continuity of this layer to prevent spalling or cracking because of quantity modifications throughout stage shifts.
3. Useful Efficiency in High-Temperature Applications
3.1 Duty in Silicon Crystal Development Processes
Quartz crucibles are vital in the manufacturing of monocrystalline and multicrystalline silicon, working as the main container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into liquified silicon kept in a quartz crucible and slowly pulled upwards while revolving, enabling single-crystal ingots to create.
Although the crucible does not straight speak to the growing crystal, communications between molten silicon and SiO ₂ walls bring about oxygen dissolution right into the melt, which can impact carrier lifetime and mechanical toughness in completed wafers.
In DS procedures for photovoltaic-grade silicon, large quartz crucibles enable the controlled cooling of countless kilos of molten silicon right into block-shaped ingots.
Right here, layers such as silicon nitride (Si four N ₄) are put on the inner surface area to stop bond and facilitate simple release of the strengthened silicon block after cooling down.
3.2 Destruction Mechanisms and Life Span Limitations
In spite of their effectiveness, quartz crucibles degrade during repeated high-temperature cycles because of numerous related mechanisms.
Viscous flow or deformation takes place at extended direct exposure above 1400 ° C, bring about wall surface thinning and loss of geometric honesty.
Re-crystallization of fused silica into cristobalite generates inner stress and anxieties because of quantity growth, potentially triggering fractures or spallation that infect the thaw.
Chemical disintegration emerges from decrease reactions between molten silicon and SiO TWO: SiO TWO + Si → 2SiO(g), creating unstable silicon monoxide that gets away and weakens the crucible wall surface.
Bubble formation, driven by caught gases or OH teams, additionally endangers structural toughness and thermal conductivity.
These destruction pathways restrict the variety of reuse cycles and require precise procedure control to make best use of crucible life-span and product yield.
4. Emerging Developments and Technical Adaptations
4.1 Coatings and Compound Modifications
To enhance performance and durability, advanced quartz crucibles integrate practical finishings and composite frameworks.
Silicon-based anti-sticking layers and doped silica coatings boost release qualities and lower oxygen outgassing throughout melting.
Some producers incorporate zirconia (ZrO ₂) bits into the crucible wall to boost mechanical strength and resistance to devitrification.
Study is recurring into completely clear or gradient-structured crucibles designed to enhance convected heat transfer in next-generation solar furnace styles.
4.2 Sustainability and Recycling Obstacles
With raising need from the semiconductor and solar sectors, sustainable use of quartz crucibles has become a priority.
Used crucibles contaminated with silicon deposit are hard to reuse due to cross-contamination threats, bring about significant waste generation.
Initiatives focus on creating multiple-use crucible liners, improved cleaning procedures, and closed-loop recycling systems to recuperate high-purity silica for additional applications.
As device effectiveness demand ever-higher product purity, the function of quartz crucibles will remain to progress through technology in products scientific research and procedure engineering.
In recap, quartz crucibles stand for an important interface between raw materials and high-performance electronic products.
Their special combination of purity, thermal strength, and architectural design allows the manufacture of silicon-based innovations that power modern computing and renewable resource systems.
