1. Material Basics and Crystal Chemistry
1.1 Make-up and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its exceptional firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in stacking sequences– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technologically appropriate.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) cause a high melting point (~ 2700 ° C), low thermal growth (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have a native lustrous phase, adding to its stability in oxidizing and harsh environments as much as 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending upon polytype) likewise endows it with semiconductor homes, making it possible for dual usage in architectural and digital applications.
1.2 Sintering Challenges and Densification Approaches
Pure SiC is incredibly tough to densify as a result of its covalent bonding and low self-diffusion coefficients, requiring using sintering aids or advanced handling methods.
Reaction-bonded SiC (RB-SiC) is produced by penetrating porous carbon preforms with liquified silicon, creating SiC in situ; this method returns near-net-shape parts with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon ingredients to promote densification at ~ 2000– 2200 ° C under inert atmosphere, accomplishing > 99% academic thickness and remarkable mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide additives such as Al Two O ₃– Y TWO O FIVE, creating a short-term liquid that enhances diffusion yet may lower high-temperature strength because of grain-boundary phases.
Hot pushing and spark plasma sintering (SPS) use quick, pressure-assisted densification with great microstructures, suitable for high-performance elements needing marginal grain development.
2. Mechanical and Thermal Performance Characteristics
2.1 Toughness, Firmness, and Put On Resistance
Silicon carbide porcelains show Vickers firmness values of 25– 30 GPa, second just to diamond and cubic boron nitride among engineering products.
Their flexural toughness normally varies from 300 to 600 MPa, with fracture durability (K_IC) of 3– 5 MPa · m 1ST/ TWO– modest for porcelains however improved through microstructural design such as hair or fiber support.
The combination of high hardness and elastic modulus (~ 410 Grade point average) makes SiC remarkably resistant to abrasive and abrasive wear, exceeding tungsten carbide and hardened steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC parts demonstrate service lives a number of times longer than traditional options.
Its low thickness (~ 3.1 g/cm FOUR) further adds to wear resistance by reducing inertial pressures in high-speed revolving components.
2.2 Thermal Conductivity and Security
Among SiC’s most distinct attributes is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline kinds, and as much as 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals except copper and light weight aluminum.
This residential or commercial property makes it possible for efficient heat dissipation in high-power digital substrates, brake discs, and warmth exchanger components.
Coupled with low thermal expansion, SiC exhibits exceptional thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high worths indicate strength to rapid temperature changes.

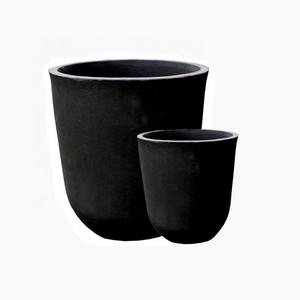

As an example, SiC crucibles can be heated from space temperature level to 1400 ° C in mins without fracturing, an accomplishment unattainable for alumina or zirconia in comparable conditions.
Additionally, SiC maintains toughness up to 1400 ° C in inert ambiences, making it ideal for heating system fixtures, kiln furniture, and aerospace parts revealed to extreme thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Habits in Oxidizing and Reducing Ambiences
At temperatures listed below 800 ° C, SiC is highly secure in both oxidizing and decreasing atmospheres.
Above 800 ° C in air, a protective silica (SiO ₂) layer forms on the surface using oxidation (SiC + 3/2 O ₂ → SiO TWO + CARBON MONOXIDE), which passivates the material and slows down additional destruction.
Nevertheless, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, bring about accelerated recession– an important consideration in generator and combustion applications.
In reducing atmospheres or inert gases, SiC continues to be secure approximately its decay temperature level (~ 2700 ° C), with no phase modifications or toughness loss.
This stability makes it ideal for molten steel handling, such as light weight aluminum or zinc crucibles, where it resists wetting and chemical attack far much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids other than hydrofluoric acid (HF) and solid oxidizing acid blends (e.g., HF– HNO TWO).
It shows superb resistance to alkalis as much as 800 ° C, though extended exposure to thaw NaOH or KOH can trigger surface area etching by means of formation of soluble silicates.
In liquified salt settings– such as those in focused solar energy (CSP) or nuclear reactors– SiC shows superior rust resistance contrasted to nickel-based superalloys.
This chemical robustness underpins its use in chemical process equipment, including shutoffs, linings, and warmth exchanger tubes dealing with aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Arising Frontiers
4.1 Established Uses in Power, Defense, and Production
Silicon carbide porcelains are essential to countless high-value commercial systems.
In the power industry, they work as wear-resistant linings in coal gasifiers, parts in nuclear fuel cladding (SiC/SiC composites), and substrates for high-temperature solid oxide fuel cells (SOFCs).
Protection applications consist of ballistic armor plates, where SiC’s high hardness-to-density ratio gives exceptional protection versus high-velocity projectiles compared to alumina or boron carbide at reduced price.
In manufacturing, SiC is used for precision bearings, semiconductor wafer managing elements, and unpleasant blasting nozzles because of its dimensional security and pureness.
Its use in electric vehicle (EV) inverters as a semiconductor substratum is rapidly expanding, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Dopes and Sustainability
Continuous research concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which display pseudo-ductile behavior, improved strength, and retained toughness over 1200 ° C– suitable for jet engines and hypersonic automobile leading edges.
Additive production of SiC via binder jetting or stereolithography is advancing, allowing complicated geometries formerly unattainable through conventional creating approaches.
From a sustainability viewpoint, SiC’s long life decreases replacement regularity and lifecycle discharges in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being developed via thermal and chemical healing processes to recover high-purity SiC powder.
As markets press toward greater efficiency, electrification, and extreme-environment procedure, silicon carbide-based ceramics will stay at the center of sophisticated materials engineering, connecting the void between structural strength and functional flexibility.
