1. Crystal Structure and Bonding Nature of Ti ₂ AlC
1.1 Limit Stage Family Members and Atomic Piling Series

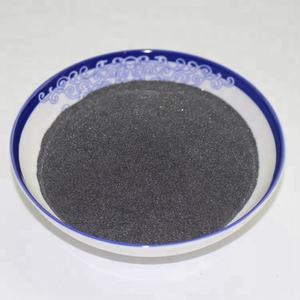

(Ti2AlC MAX Phase Powder)
Ti two AlC belongs to limit phase family, a class of nanolaminated ternary carbides and nitrides with the basic formula Mₙ ₊₁ AXₙ, where M is a very early change steel, A is an A-group aspect, and X is carbon or nitrogen.
In Ti ₂ AlC, titanium (Ti) acts as the M component, light weight aluminum (Al) as the A component, and carbon (C) as the X component, creating a 211 framework (n=1) with rotating layers of Ti six C octahedra and Al atoms stacked along the c-axis in a hexagonal lattice.
This one-of-a-kind split architecture integrates solid covalent bonds within the Ti– C layers with weak metal bonds in between the Ti and Al airplanes, resulting in a hybrid product that exhibits both ceramic and metallic qualities.
The durable Ti– C covalent network gives high stiffness, thermal stability, and oxidation resistance, while the metallic Ti– Al bonding makes it possible for electric conductivity, thermal shock resistance, and damage tolerance uncommon in standard porcelains.
This duality occurs from the anisotropic nature of chemical bonding, which permits power dissipation systems such as kink-band formation, delamination, and basic airplane cracking under tension, rather than disastrous breakable crack.
1.2 Electronic Structure and Anisotropic Features
The digital configuration of Ti two AlC features overlapping d-orbitals from titanium and p-orbitals from carbon and aluminum, resulting in a high thickness of states at the Fermi degree and innate electric and thermal conductivity along the basal planes.
This metallic conductivity– uncommon in ceramic materials– makes it possible for applications in high-temperature electrodes, present collectors, and electromagnetic protecting.
Residential or commercial property anisotropy is obvious: thermal expansion, flexible modulus, and electric resistivity vary substantially between the a-axis (in-plane) and c-axis (out-of-plane) directions because of the layered bonding.
For example, thermal expansion along the c-axis is less than along the a-axis, contributing to boosted resistance to thermal shock.
Additionally, the product shows a reduced Vickers firmness (~ 4– 6 GPa) contrasted to conventional ceramics like alumina or silicon carbide, yet keeps a high Young’s modulus (~ 320 Grade point average), mirroring its one-of-a-kind combination of softness and stiffness.
This balance makes Ti two AlC powder specifically ideal for machinable ceramics and self-lubricating compounds.

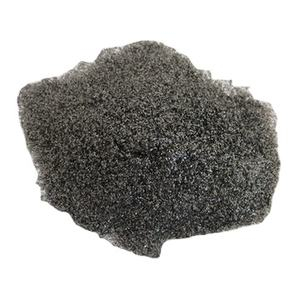

( Ti2AlC MAX Phase Powder)
2. Synthesis and Handling of Ti Two AlC Powder
2.1 Solid-State and Advanced Powder Production Approaches
Ti ₂ AlC powder is largely manufactured with solid-state reactions between elemental or compound forerunners, such as titanium, aluminum, and carbon, under high-temperature conditions (1200– 1500 ° C )in inert or vacuum cleaner environments.
The reaction: 2Ti + Al + C → Ti ₂ AlC, have to be meticulously regulated to stop the development of competing phases like TiC, Ti Two Al, or TiAl, which weaken useful efficiency.
Mechanical alloying followed by heat treatment is another widely utilized method, where essential powders are ball-milled to achieve atomic-level mixing before annealing to create the MAX phase.
This approach enables fine fragment dimension control and homogeneity, vital for sophisticated consolidation strategies.
Much more innovative approaches, such as trigger plasma sintering (SPS), chemical vapor deposition (CVD), and molten salt synthesis, offer routes to phase-pure, nanostructured, or oriented Ti ₂ AlC powders with customized morphologies.
Molten salt synthesis, specifically, enables lower response temperatures and far better fragment dispersion by serving as a flux tool that enhances diffusion kinetics.
2.2 Powder Morphology, Purity, and Dealing With Factors to consider
The morphology of Ti ₂ AlC powder– varying from uneven angular particles to platelet-like or spherical granules– relies on the synthesis route and post-processing actions such as milling or category.
Platelet-shaped fragments mirror the inherent layered crystal framework and are advantageous for reinforcing composites or developing textured mass products.
High stage purity is crucial; also small amounts of TiC or Al ₂ O ₃ pollutants can significantly alter mechanical, electrical, and oxidation habits.
X-ray diffraction (XRD) and electron microscopy (SEM/TEM) are consistently utilized to analyze stage composition and microstructure.
Due to aluminum’s reactivity with oxygen, Ti ₂ AlC powder is susceptible to surface oxidation, forming a slim Al two O four layer that can passivate the material yet may hinder sintering or interfacial bonding in compounds.
Consequently, storage space under inert environment and handling in controlled settings are essential to preserve powder honesty.
3. Functional Behavior and Efficiency Mechanisms
3.1 Mechanical Resilience and Damages Resistance
One of one of the most remarkable features of Ti ₂ AlC is its capacity to stand up to mechanical damages without fracturing catastrophically, a residential property called “damages tolerance” or “machinability” in ceramics.
Under lots, the product accommodates anxiety with devices such as microcracking, basic airplane delamination, and grain limit moving, which dissipate power and prevent split breeding.
This behavior contrasts sharply with standard ceramics, which generally stop working suddenly upon reaching their elastic restriction.
Ti two AlC parts can be machined utilizing conventional tools without pre-sintering, an uncommon capability among high-temperature porcelains, decreasing manufacturing prices and allowing intricate geometries.
Furthermore, it shows exceptional thermal shock resistance due to low thermal expansion and high thermal conductivity, making it appropriate for elements based on quick temperature adjustments.
3.2 Oxidation Resistance and High-Temperature Security
At elevated temperature levels (up to 1400 ° C in air), Ti two AlC develops a protective alumina (Al ₂ O THREE) scale on its surface area, which acts as a diffusion barrier versus oxygen access, dramatically slowing more oxidation.
This self-passivating habits is comparable to that seen in alumina-forming alloys and is important for lasting security in aerospace and energy applications.
However, above 1400 ° C, the development of non-protective TiO two and internal oxidation of light weight aluminum can result in accelerated destruction, limiting ultra-high-temperature usage.
In minimizing or inert settings, Ti ₂ AlC maintains architectural integrity up to 2000 ° C, demonstrating remarkable refractory features.
Its resistance to neutron irradiation and reduced atomic number also make it a prospect material for nuclear combination reactor elements.
4. Applications and Future Technological Assimilation
4.1 High-Temperature and Architectural Elements
Ti ₂ AlC powder is utilized to make mass porcelains and finishings for severe settings, consisting of generator blades, burner, and heating system elements where oxidation resistance and thermal shock tolerance are vital.
Hot-pressed or trigger plasma sintered Ti two AlC exhibits high flexural toughness and creep resistance, outshining numerous monolithic ceramics in cyclic thermal loading situations.
As a covering material, it secures metal substratums from oxidation and put on in aerospace and power generation systems.
Its machinability enables in-service repair work and precision completing, a substantial benefit over brittle ceramics that require ruby grinding.
4.2 Practical and Multifunctional Product Systems
Beyond architectural functions, Ti two AlC is being explored in functional applications leveraging its electric conductivity and layered framework.
It acts as a precursor for manufacturing two-dimensional MXenes (e.g., Ti six C TWO Tₓ) using selective etching of the Al layer, enabling applications in energy storage space, sensing units, and electromagnetic interference protecting.
In composite products, Ti ₂ AlC powder enhances the durability and thermal conductivity of ceramic matrix composites (CMCs) and steel matrix composites (MMCs).
Its lubricious nature under heat– as a result of easy basic aircraft shear– makes it appropriate for self-lubricating bearings and moving elements in aerospace devices.
Emerging research study concentrates on 3D printing of Ti two AlC-based inks for net-shape manufacturing of intricate ceramic parts, pressing the borders of additive manufacturing in refractory materials.
In recap, Ti two AlC MAX stage powder represents a paradigm shift in ceramic materials science, bridging the gap between steels and porcelains through its layered atomic style and crossbreed bonding.
Its one-of-a-kind combination of machinability, thermal stability, oxidation resistance, and electric conductivity makes it possible for next-generation elements for aerospace, power, and advanced manufacturing.
As synthesis and processing modern technologies grow, Ti ₂ AlC will play an increasingly crucial role in engineering products designed for severe and multifunctional environments.
