1. Material Fundamentals and Crystallographic Characteristic
1.1 Phase Make-up and Polymorphic Behavior

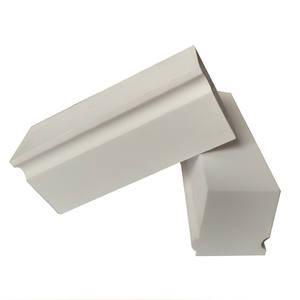

(Alumina Ceramic Blocks)
Alumina (Al Two O FIVE), specifically in its α-phase form, is just one of one of the most extensively utilized technical ceramics because of its outstanding balance of mechanical strength, chemical inertness, and thermal security.
While aluminum oxide exists in a number of metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically steady crystalline structure at high temperatures, defined by a dense hexagonal close-packed (HCP) plan of oxygen ions with aluminum cations occupying two-thirds of the octahedral interstitial websites.
This ordered framework, known as corundum, provides high lattice power and solid ionic-covalent bonding, leading to a melting factor of approximately 2054 ° C and resistance to stage makeover under extreme thermal conditions.
The change from transitional aluminas to α-Al ₂ O two commonly takes place over 1100 ° C and is accompanied by significant volume contraction and loss of surface, making stage control important during sintering.
High-purity α-alumina blocks (> 99.5% Al Two O SIX) show superior efficiency in severe atmospheres, while lower-grade make-ups (90– 95%) may include second stages such as mullite or lustrous grain boundary phases for cost-efficient applications.
1.2 Microstructure and Mechanical Stability
The efficiency of alumina ceramic blocks is profoundly affected by microstructural attributes consisting of grain dimension, porosity, and grain limit cohesion.
Fine-grained microstructures (grain dimension < 5 µm) normally give higher flexural strength (as much as 400 MPa) and improved fracture sturdiness contrasted to grainy counterparts, as smaller grains hinder crack propagation.
Porosity, also at reduced degrees (1– 5%), considerably minimizes mechanical stamina and thermal conductivity, requiring complete densification through pressure-assisted sintering techniques such as warm pushing or warm isostatic pushing (HIP).
Additives like MgO are commonly presented in trace quantities (≈ 0.1 wt%) to prevent abnormal grain development during sintering, making sure uniform microstructure and dimensional security.
The resulting ceramic blocks show high firmness (≈ 1800 HV), outstanding wear resistance, and reduced creep prices at elevated temperatures, making them ideal for load-bearing and unpleasant atmospheres.
2. Production and Handling Techniques

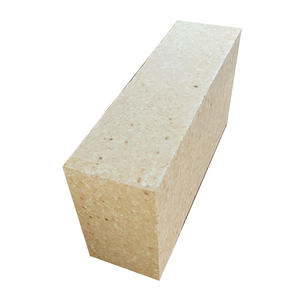

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Methods
The manufacturing of alumina ceramic blocks starts with high-purity alumina powders stemmed from calcined bauxite through the Bayer process or synthesized through precipitation or sol-gel courses for greater pureness.
Powders are crushed to attain slim bit size circulation, enhancing packing thickness and sinterability.
Shaping into near-net geometries is achieved through numerous creating methods: uniaxial pushing for straightforward blocks, isostatic pushing for uniform thickness in complex forms, extrusion for lengthy areas, and slide casting for complex or huge parts.
Each approach influences environment-friendly body density and homogeneity, which directly influence final homes after sintering.
For high-performance applications, advanced creating such as tape casting or gel-casting might be employed to accomplish premium dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels between 1600 ° C and 1750 ° C enables diffusion-driven densification, where bit necks expand and pores diminish, causing a totally dense ceramic body.
Environment control and accurate thermal accounts are important to prevent bloating, bending, or differential shrinking.
Post-sintering operations include diamond grinding, washing, and polishing to attain tight tolerances and smooth surface area coatings called for in sealing, moving, or optical applications.
Laser cutting and waterjet machining permit accurate modification of block geometry without inducing thermal tension.
Surface treatments such as alumina covering or plasma spraying can better boost wear or deterioration resistance in specific service conditions.
3. Useful Characteristics and Efficiency Metrics
3.1 Thermal and Electrical Actions
Alumina ceramic blocks show modest thermal conductivity (20– 35 W/(m · K)), considerably higher than polymers and glasses, allowing reliable warm dissipation in electronic and thermal management systems.
They preserve architectural honesty as much as 1600 ° C in oxidizing ambiences, with low thermal development (≈ 8 ppm/K), adding to outstanding thermal shock resistance when properly created.
Their high electric resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric toughness (> 15 kV/mm) make them suitable electric insulators in high-voltage environments, including power transmission, switchgear, and vacuum systems.
Dielectric constant (εᵣ ≈ 9– 10) remains steady over a broad regularity array, sustaining use in RF and microwave applications.
These buildings allow alumina obstructs to function accurately in environments where natural products would break down or fail.
3.2 Chemical and Environmental Resilience
Among the most important qualities of alumina blocks is their remarkable resistance to chemical attack.
They are very inert to acids (except hydrofluoric and hot phosphoric acids), antacid (with some solubility in solid caustics at raised temperature levels), and molten salts, making them suitable for chemical processing, semiconductor fabrication, and pollution control equipment.
Their non-wetting habits with lots of liquified metals and slags allows use in crucibles, thermocouple sheaths, and furnace linings.
Additionally, alumina is non-toxic, biocompatible, and radiation-resistant, broadening its utility right into clinical implants, nuclear shielding, and aerospace parts.
Very little outgassing in vacuum settings additionally certifies it for ultra-high vacuum cleaner (UHV) systems in research study and semiconductor production.
4. Industrial Applications and Technological Combination
4.1 Architectural and Wear-Resistant Parts
Alumina ceramic blocks serve as crucial wear parts in industries varying from extracting to paper manufacturing.
They are used as liners in chutes, hoppers, and cyclones to stand up to abrasion from slurries, powders, and granular materials, considerably extending service life contrasted to steel.
In mechanical seals and bearings, alumina blocks give reduced friction, high hardness, and deterioration resistance, reducing maintenance and downtime.
Custom-shaped blocks are incorporated right into reducing devices, dies, and nozzles where dimensional stability and edge retention are critical.
Their lightweight nature (density ≈ 3.9 g/cm TWO) likewise contributes to power financial savings in relocating components.
4.2 Advanced Design and Emerging Utilizes
Beyond traditional functions, alumina blocks are significantly utilized in innovative technological systems.
In electronics, they operate as insulating substrates, heat sinks, and laser tooth cavity elements as a result of their thermal and dielectric residential or commercial properties.
In power systems, they serve as strong oxide fuel cell (SOFC) elements, battery separators, and combination activator plasma-facing materials.
Additive manufacturing of alumina through binder jetting or stereolithography is arising, making it possible for intricate geometries previously unattainable with conventional forming.
Crossbreed frameworks integrating alumina with steels or polymers via brazing or co-firing are being developed for multifunctional systems in aerospace and defense.
As product scientific research breakthroughs, alumina ceramic blocks continue to progress from easy structural elements right into energetic parts in high-performance, sustainable engineering options.
In recap, alumina ceramic blocks represent a foundational class of advanced porcelains, combining robust mechanical efficiency with phenomenal chemical and thermal stability.
Their adaptability throughout industrial, electronic, and clinical domain names highlights their enduring value in contemporary engineering and technology growth.
