1. Material Fundamentals and Structural Residence
1.1 Crystal Chemistry and Polymorphism

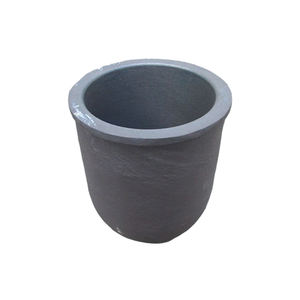

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms prepared in a tetrahedral lattice, creating among one of the most thermally and chemically robust products known.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal structures being most relevant for high-temperature applications.
The solid Si– C bonds, with bond power exceeding 300 kJ/mol, confer extraordinary solidity, thermal conductivity, and resistance to thermal shock and chemical strike.
In crucible applications, sintered or reaction-bonded SiC is preferred as a result of its ability to maintain architectural stability under extreme thermal gradients and corrosive molten atmospheres.
Unlike oxide porcelains, SiC does not undertake disruptive stage shifts as much as its sublimation factor (~ 2700 ° C), making it suitable for continual operation over 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining characteristic of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises uniform warmth circulation and decreases thermal anxiety during rapid heating or air conditioning.
This residential or commercial property contrasts sharply with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are prone to fracturing under thermal shock.
SiC additionally displays exceptional mechanical toughness at elevated temperature levels, preserving over 80% of its room-temperature flexural stamina (as much as 400 MPa) even at 1400 ° C.
Its low coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) even more enhances resistance to thermal shock, an important consider repeated cycling in between ambient and operational temperature levels.
Additionally, SiC shows exceptional wear and abrasion resistance, making certain long life span in environments entailing mechanical handling or stormy thaw flow.
2. Production Methods and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Techniques and Densification Techniques
Commercial SiC crucibles are primarily made via pressureless sintering, reaction bonding, or hot pushing, each offering distinctive benefits in cost, purity, and efficiency.
Pressureless sintering includes condensing fine SiC powder with sintering help such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to accomplish near-theoretical density.
This technique yields high-purity, high-strength crucibles appropriate for semiconductor and advanced alloy processing.
Reaction-bonded SiC (RBSC) is generated by infiltrating a porous carbon preform with molten silicon, which reacts to form β-SiC sitting, causing a compound of SiC and residual silicon.
While a little reduced in thermal conductivity as a result of metal silicon additions, RBSC provides excellent dimensional stability and reduced production price, making it preferred for large industrial usage.
Hot-pressed SiC, though more expensive, gives the highest density and pureness, reserved for ultra-demanding applications such as single-crystal development.
2.2 Surface Area Quality and Geometric Accuracy
Post-sintering machining, consisting of grinding and lapping, makes sure precise dimensional tolerances and smooth inner surface areas that reduce nucleation websites and reduce contamination risk.
Surface roughness is very carefully regulated to prevent melt bond and promote simple release of strengthened products.
Crucible geometry– such as wall surface density, taper angle, and bottom curvature– is maximized to balance thermal mass, architectural strength, and compatibility with furnace burner.
Custom styles suit specific melt quantities, heating accounts, and material sensitivity, guaranteeing optimal efficiency across diverse commercial processes.
Advanced quality assurance, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic testing, verifies microstructural homogeneity and absence of problems like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Aggressive Settings
SiC crucibles display extraordinary resistance to chemical attack by molten metals, slags, and non-oxidizing salts, exceeding conventional graphite and oxide porcelains.
They are steady in contact with liquified aluminum, copper, silver, and their alloys, standing up to wetting and dissolution due to low interfacial power and formation of protective surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles protect against metal contamination that can deteriorate digital residential or commercial properties.
Nonetheless, under extremely oxidizing conditions or in the visibility of alkaline changes, SiC can oxidize to develop silica (SiO TWO), which might respond better to develop low-melting-point silicates.
Therefore, SiC is ideal matched for neutral or decreasing environments, where its security is made best use of.
3.2 Limitations and Compatibility Considerations
Despite its robustness, SiC is not widely inert; it reacts with specific liquified products, especially iron-group steels (Fe, Ni, Co) at high temperatures with carburization and dissolution processes.
In liquified steel processing, SiC crucibles weaken quickly and are consequently avoided.
Similarly, alkali and alkaline planet metals (e.g., Li, Na, Ca) can minimize SiC, launching carbon and developing silicides, restricting their usage in battery material synthesis or reactive metal casting.
For molten glass and ceramics, SiC is normally suitable but might present trace silicon into very sensitive optical or digital glasses.
Recognizing these material-specific interactions is vital for choosing the ideal crucible type and making certain procedure purity and crucible durability.
4. Industrial Applications and Technical Advancement
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are vital in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they hold up against extended exposure to molten silicon at ~ 1420 ° C.
Their thermal stability makes sure consistent formation and reduces misplacement thickness, directly influencing photovoltaic or pv efficiency.
In factories, SiC crucibles are utilized for melting non-ferrous metals such as aluminum and brass, using longer service life and lowered dross formation compared to clay-graphite options.
They are likewise employed in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic compounds.
4.2 Future Patterns and Advanced Material Combination
Arising applications include making use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O THREE) are being related to SiC surfaces to better improve chemical inertness and avoid silicon diffusion in ultra-high-purity procedures.
Additive manufacturing of SiC components making use of binder jetting or stereolithography is under growth, promising complex geometries and rapid prototyping for specialized crucible layouts.
As need expands for energy-efficient, long lasting, and contamination-free high-temperature handling, silicon carbide crucibles will continue to be a keystone technology in advanced products manufacturing.
Finally, silicon carbide crucibles stand for an essential enabling part in high-temperature commercial and clinical processes.
Their unmatched combination of thermal stability, mechanical stamina, and chemical resistance makes them the material of option for applications where performance and dependability are extremely important.
